| Pipe Material: | |
|---|---|
| Mounting Method: | |
| Surface Treatment: | |
| Shaft Type: | |
| Quantity: | |
R1100
RONWIN
HS Code: 8431390000

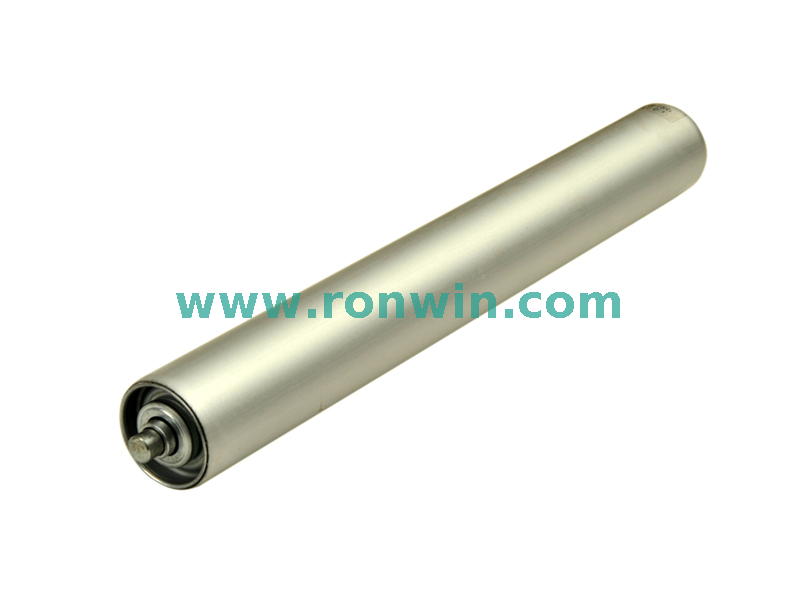

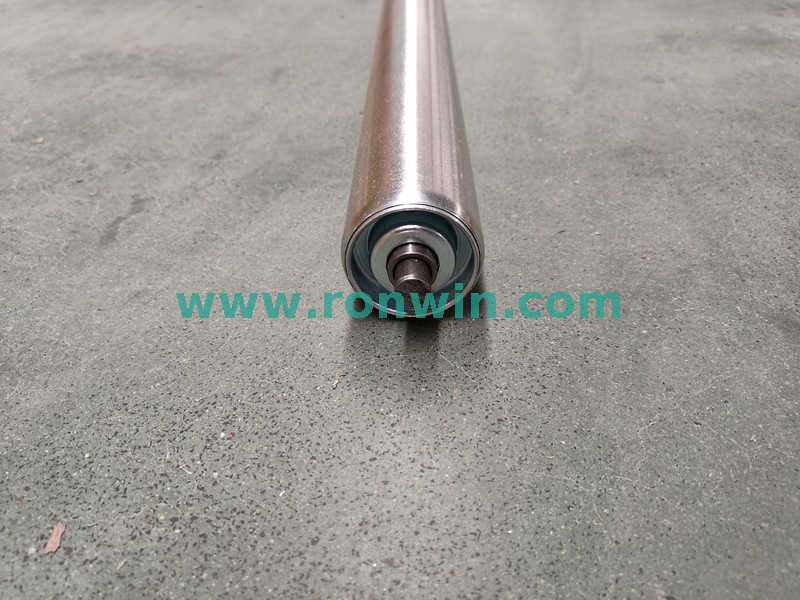

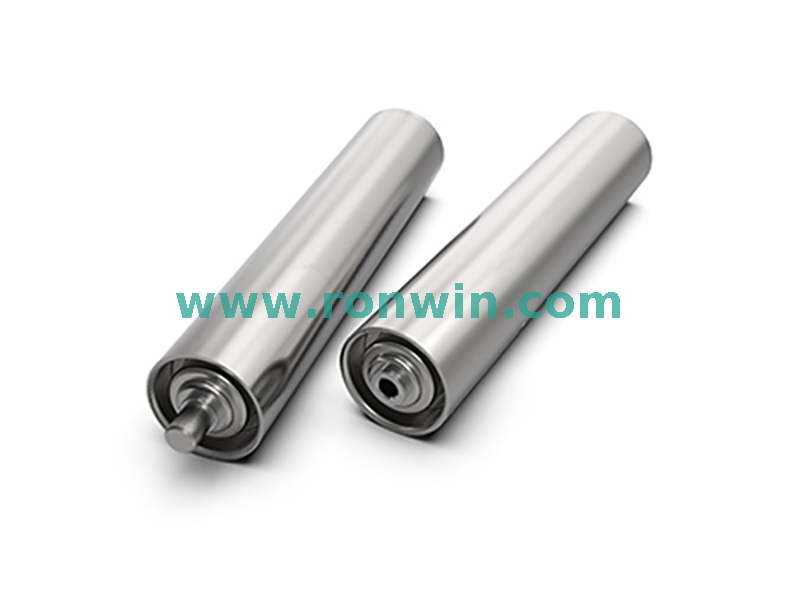

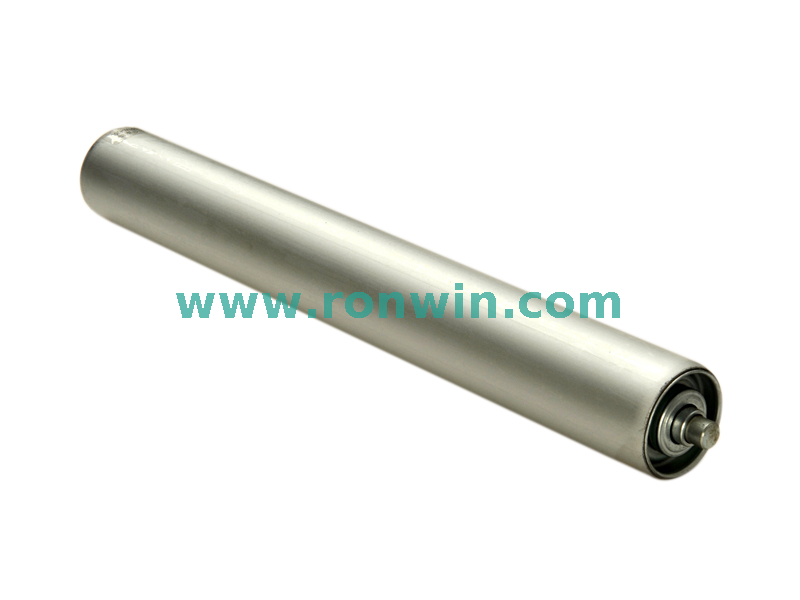

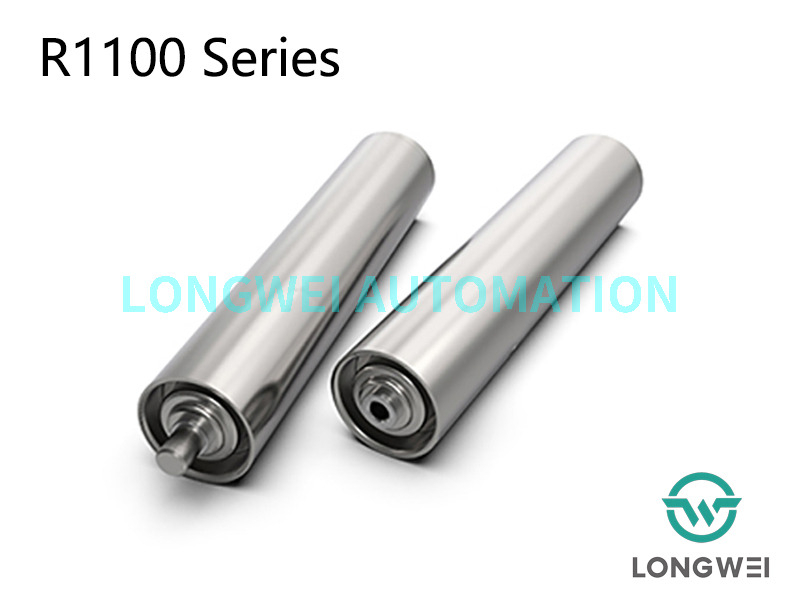

Character & Advantage of R1100 Light/Medium Duty Gravity Conveyor Roller
R1100 series light/medium duty gravity conveyor roller is configure with specially maked semi-precision bearing, roller works more portable and flexible.
The roller has a larger clearance than precision ball bearings, the impact loading capacity is more than other series.
The working noise of R1100 sereis gravity steel roller is a little lounder than other rollers, but it could fully meet the requirement of the common gravity conveying.
The roller is suitable for low and middle speed application, not suggest for high speed application.
The roller bearing housing is steel which make the roller can work well both in high and low temperature, temperature range is -20℃ to +80℃.
Technical data
General technical data | |
Max. load capacity | 140 KGS |
Max. conveyor speed | 30 m/min |
Temperature range | −20°C to +80 °C |
Material | |
Tube | Carbon steel, stainless steel, aluminum |
Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
Bearing housing | steel |
End cap | steel |
Bearing | Semi-precision ball bearing |
Design versions | |
Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
Lagging | Rubber, PU |

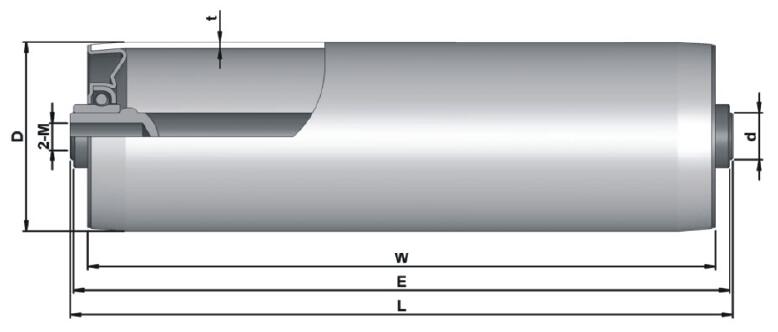

Diagram of R1100 Light/Medium Duty Conveyor Roller
Dimension of series R1100 with spring loaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel, aluminum | 25×1.0/0.7 | Φ6/8 | E=W+10 | L=W+32 |
Steel, stainless steel | 38×1.2 | Φ12/11 HEX | E=W+7 | L=W+29 |
Steel, stainless steel, aluminum | 50×1.5 | Φ12/11 HEX | E=W+9 | L=W+31 |
Dimension of series R1100 with female threaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel, aluminum | 25×1.0/0.7 | Φ6/8 | E=W+10 | L=W+12 |
Steel, stainless steel | 38×1.2 | Φ12/11 HEX | E=W+7 | L=W+9 |
Steel, stainless steel, aluminum | 50×1.5 | Φ12/11 HEX | E=W+9 | L=W+11 |
Character & Advantage of R1100 Light/Medium Duty Gravity Conveyor Roller
R1100 series light/medium duty gravity conveyor roller is configure with specially maked semi-precision bearing, roller works more portable and flexible.
The roller has a larger clearance than precision ball bearings, the impact loading capacity is more than other series.
The working noise of R1100 sereis gravity steel roller is a little lounder than other rollers, but it could fully meet the requirement of the common gravity conveying.
The roller is suitable for low and middle speed application, not suggest for high speed application.
The roller bearing housing is steel which make the roller can work well both in high and low temperature, temperature range is -20℃ to +80℃.
Technical data
General technical data | |
Max. load capacity | 140 KGS |
Max. conveyor speed | 30 m/min |
Temperature range | −20°C to +80 °C |
Material | |
Tube | Carbon steel, stainless steel, aluminum |
Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
Bearing housing | steel |
End cap | steel |
Bearing | Semi-precision ball bearing |
Design versions | |
Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
Lagging | Rubber, PU |
Diagram of R1100 Light/Medium Duty Conveyor Roller
Dimension of series R1100 with spring loaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel, aluminum | 25×1.0/0.7 | Φ6/8 | E=W+10 | L=W+32 |
Steel, stainless steel | 38×1.2 | Φ12/11 HEX | E=W+7 | L=W+29 |
Steel, stainless steel, aluminum | 50×1.5 | Φ12/11 HEX | E=W+9 | L=W+31 |
Dimension of series R1100 with female threaded installation
Tube Material | D × T | Shaft | E | L |
Steel, stainless steel, aluminum | 25×1.0/0.7 | Φ6/8 | E=W+10 | L=W+12 |
Steel, stainless steel | 38×1.2 | Φ12/11 HEX | E=W+7 | L=W+9 |
Steel, stainless steel, aluminum | 50×1.5 | Φ12/11 HEX | E=W+9 | L=W+11 |
