R1900
RONWIN
HS Code: 8431390000

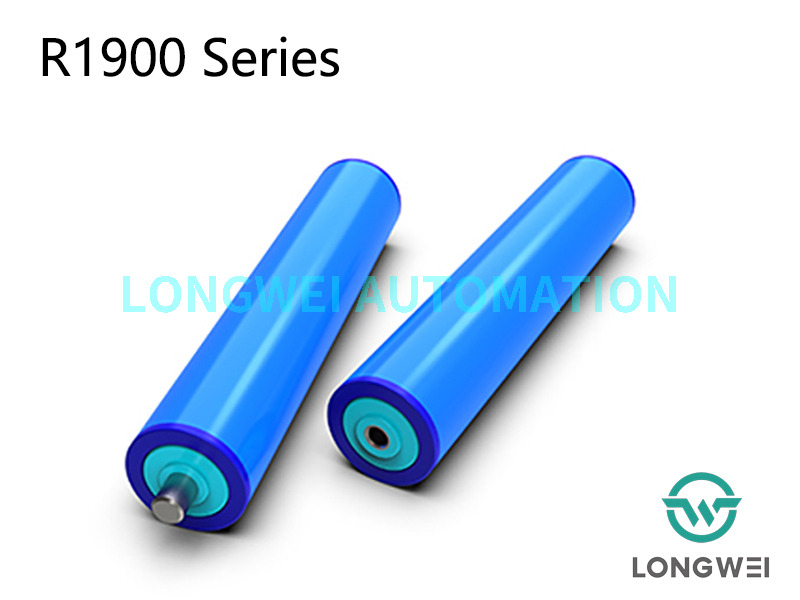

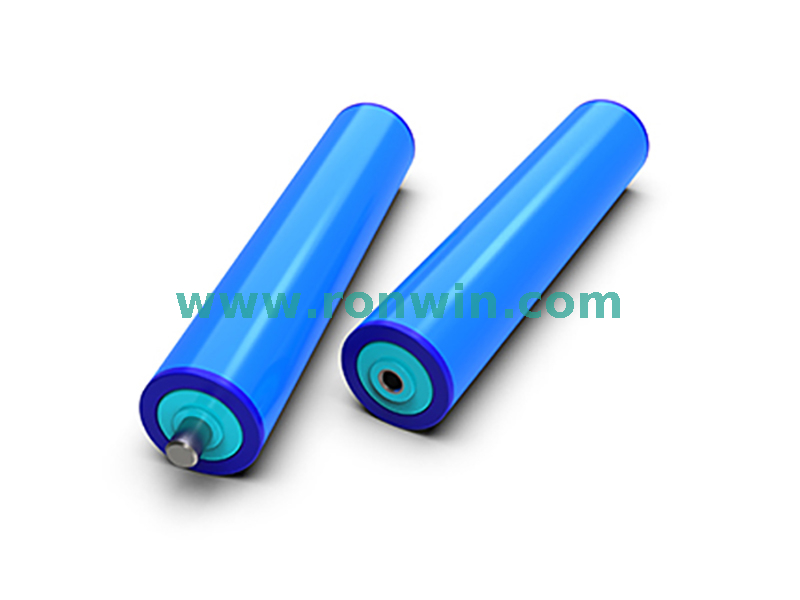

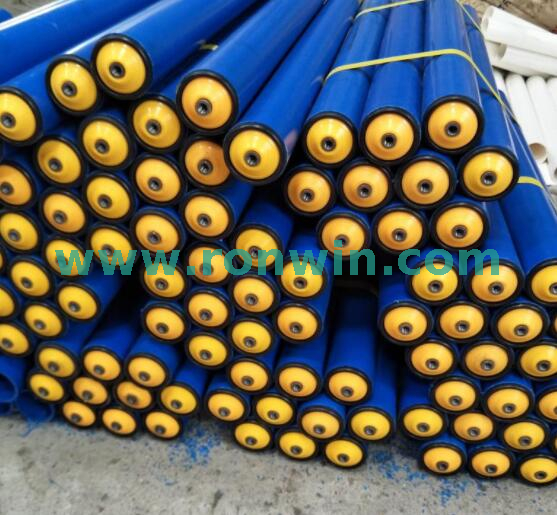

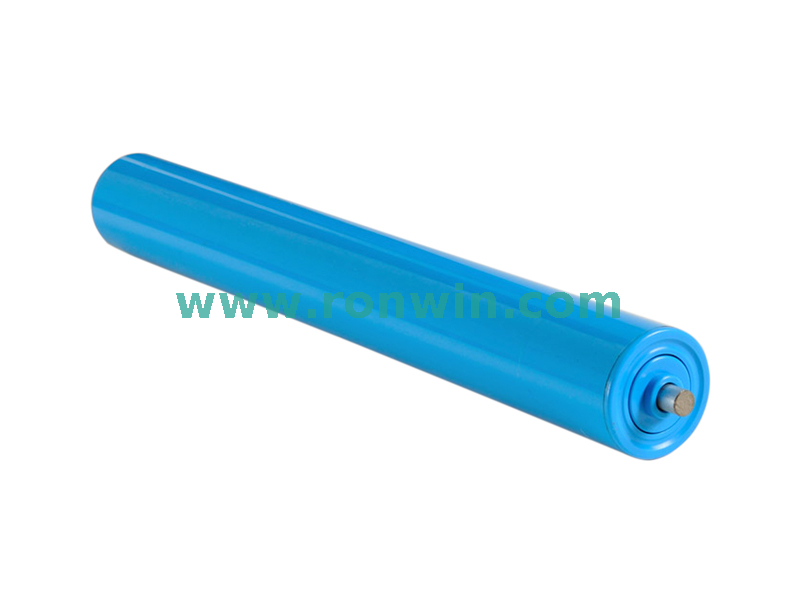

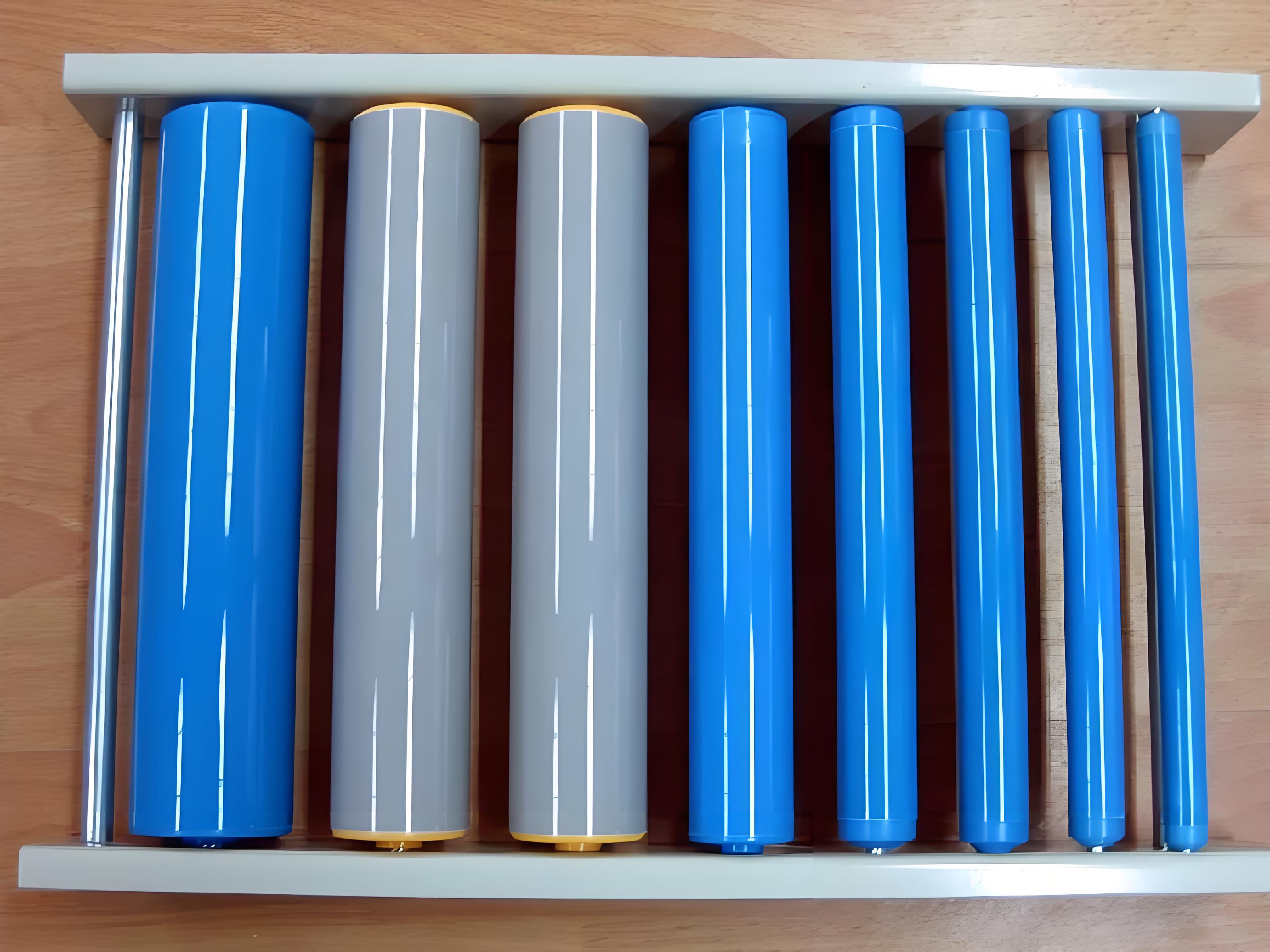

Series R1900 Light Duty Anticorrosive & Waterproof PVC Conveyor Roller
This series of roller is especial for some industry which required roller waterproof, rustproof and anti corrode from acid and alkaline. The roller pipe is made of industrial PVC tube with good chemical stability, and it is much ligher than steel pipe roller with good stability. Other components adopts polymer ball bearing, the inner/outer flange of bearing is made of POM, the ball is made of stainless steel.
The load capacity of PVC tube is much lower than the steel tube of the same diameter, but is has the advantages of low noise, well shockproof, light weight, croosion resistance and easy cleaning.

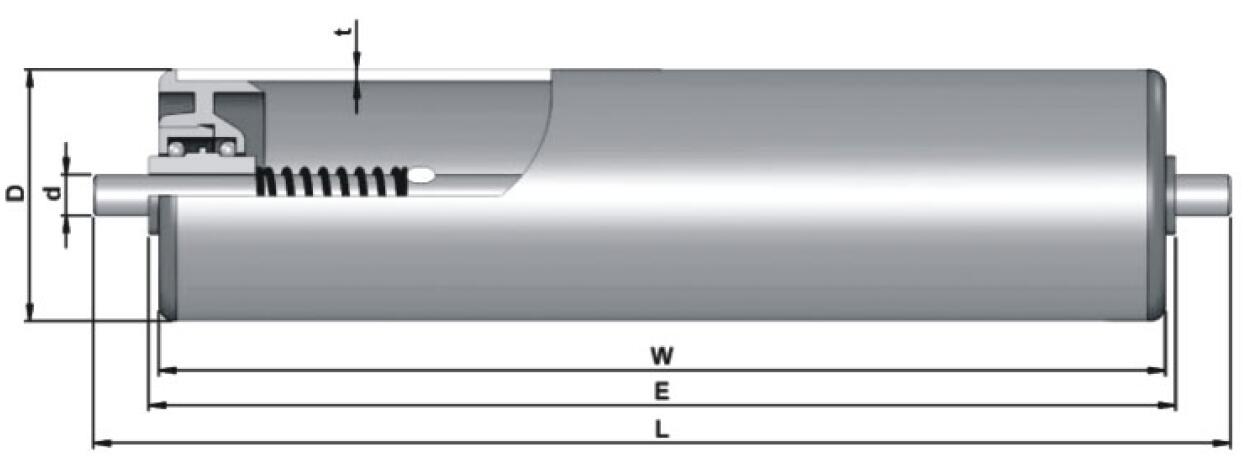

Diagram of R1900 Light Duty Conveyor Roller
Dimensions of R1900 Light Duty PVC Gravity Roller
| dia.×T | shaft dia. | female thread | spring loaded | material |
| Φ20×1.1 | Φ6 | / | E=W+6 | PVC |
| Φ25×1.8 | Φ8 | / | E=W+6 | PVC |
| Φ30×1.8 | Φ8 | / | E=W+6 | PVC |
| Φ38×2.0 | Φ8 | / | E=W+8 | PVC |
| Φ50×2.5 | Φ8/Φ10/Φ12 | E=W+8 | E=W+8 | PVC |
| Φ60×3.0 | Φ12 | E=W+8 | E=W+8 | PVC |
