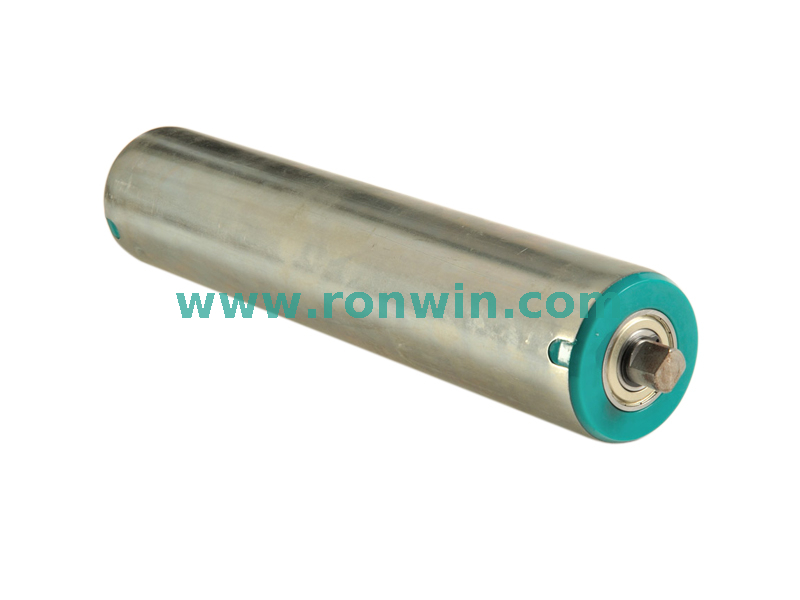

Medium/Heavy Duty Internal Brake Roller for Pallets
Speed reducers / speed controllers, also known as brake rollers in gravity racks, prevent acceleration of gravity by sliding load pallets, provide steady and smooth movement of pallets on racks, ensure safety of operators and goods. Self-adapting to different weights, constant braking force, maintenance-free, no energy consumption.
Over the past ten years, we have provided two types of brake rollers (internal and external). We have been providing brake rollers (speed controllers) to gravity racks in a variety of projects. Our users have praised our stable and reliable performance for many years.
Based on customer feedback and on-site analysis, we continuously improve the design and components. We can provide not only the medium and heavy models for 200-1500 kgs pallets, but also the light models for 10-100 kgs applications.
Dimensions & Specifications
D*T | L (min) | L (max) | |||
---|---|---|---|---|---|
80×2.5 | 265 | 1350 | BF=L+2 | E=L-30 | W=L-38 |
80×2.5 | 340 | 1350 | BF=L+2 | E=L-30 | W=L-38 |
80×2.5 | 265 | 1350 | BF=L+2 | E=L-30 | W=L-38 |
80×2.5 | 340 | 1350 | BF=L+2 | E=L-30 | W=L-38 |
Model | D*T | Shaft | Object Weight | Tube Material |
steel, zinc plated | ||||
BR80/AA | 80×2.5 | milled flats | 200-1000kg | √ |
BR80/BA | 1000-1500kg | √ | ||
BR80/AS | 200-1000kg | √ | ||
BR80/BS | 1000-1500kg |
Notes:
AA: stdard 200-1000kgs
BA: staindard 1000-1500kgs
AS: single direction 200-1000kgs
BS: single direction 1000-1500kgs
