| Power: | |
|---|---|
| Voltage: | |
| roller material: | |
| drive head: | |
| Roller shape: | |
| Quantity: | |
DGBL50A
RONWIN
HS Code: 8431390000
Motor driven roller (MDR) is a self-powered roller by integrating the motor, gear reduction box and sensor and reasonably installing them into steel tube. Thus the conveying system does not consider motor, chain, intermediate shaft or other auxiliary driving elements. No need for bulky gear reduction box. Just install the motor driven roller on the rack and connect the cable to the power supply, and the job is done. The conveying system is cleaner, denser, beautiful, safe and reliable. Motor driven roller is widely applied in food processing, medical production, electronic assembly, airport logistics, postal services, distribution and various industries. It meets diversified and automatic needs of different industries.

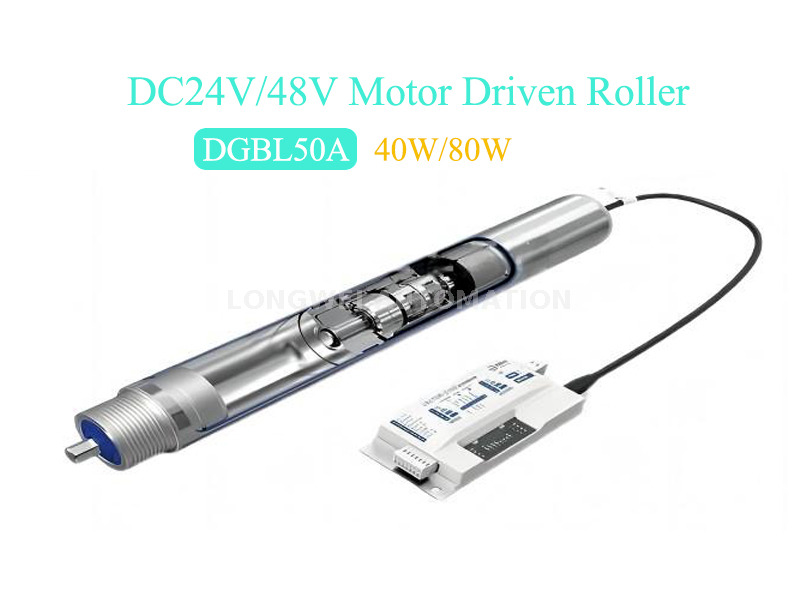

DC24V/48V DGBL50A Gear Motor Driven Roller
Brief Introduction
DGBL series motor drive roller is easy to adjust speed and high performance, be suitable for heavy, medium and light load.
Built-in high-efficiency direct brushless gear reduction motor, strong power and runs smoothly. The accompanying controller is used to achieve precise control, making the operation more convenient.
Output torque is optional, standard power type, high power type and high torque type for various loading requirements.
Adopts DC24V or DC48V safety voltage.
Speed 0.87m/min-120m/min, speed adjustable range 8.7%-100%.
Multiple intelligent controller are adapted to realize IO control, ZPA functions, with communication interface RS485, Profinet, Ethernet, CC-Link and Modbus TCP, etc.
Simple installation to reach intelligent control.
DC24V /48V Gear Motor Driven Roller-DGBL50A Corresponding Name of Parts
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |
Technical Specifications of DC24V/48V DGBL50A Gear Motor Driven Roller
DGBL50A Gear Motor Drive Roller Fixing Bracket & Intelligent Controllers
DGBL50A Gear Motor Drive Roller Model Selection
Some Pictures of Customized Motor Driven Roller
steel poly-v pulley galvanized steel motor driven roller
polymer poly-v pulley steel motor driven roller
poly-v pulley tapered motor driven roller with new controller
