C100
RONWIN
C100 Triple Strand Chain Conveyor for Pallet Handling System
Application: C100 triple strand chain conveyor is used for the indoor delivery of all palletized goods.
Features: chain conveyor adopts modular design, it is easier to assembly and maintain than roller conveyor.
It has heavy load capacity, the conveying goods and the chain are relatively stationary when conveying. It is economical and cost effective.
Model no. – chain center distance(W)- height(H)-length(L)- conveying speed(m/min)
Order no. example (unit mm): C100-1000-600-3000-15
| Specifications of C100 Chain Conveyor (unit: mm) | |
|---|---|
| length (m) | max. 40 |
| height (mm) | 500-1500 |
| chain center distance (mm) | 500, 600, 700, 800, 900, 1000, 1100 |
| rack material | steel folded-plate, U-steel, Aluminium profile |
| support leg material | rectangular tube, U-steel, Aluminium profile |
| chain model number | 08B, 10A, 12A, 16A |
| conveying speed | max 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3.0kw |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

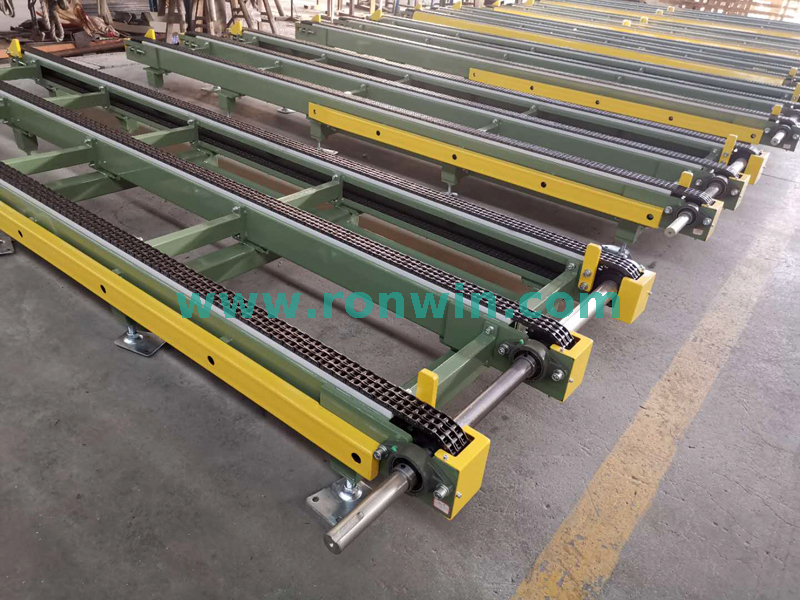

Photos been taken in factory.
