C300
RONWIN
C300 Speed Folded Chain Conveyor
Introduction
The conveying principle of speed folded chain conveyor is to use the speed increasing function of the folded speed chain to quickly run the tooling plate that supports the goods on it, and stop it at the corresponding operating position through a stopper; Or complete the accumulation and playback actions and functions such as moving, transposing, and dedicated lines through corresponding commands.
Application
The most commonly used industries for speed chain assembly lines include: computer display production lines, computer host production lines, notebook computer assembly lines, air conditioning production lines, television assembly lines, microwave oven assembly lines, printer assembly lines, fax machine assembly lines, audio amplifier production lines, and engine assembly lines.
Features
Accurate conveying speed and stable convey.
Easy to realize accumulating convey.
Adopts special made aluminum profile, easy to assemble.
Nice structure, cost-effective, low noise.
Multiple function, high level automation.

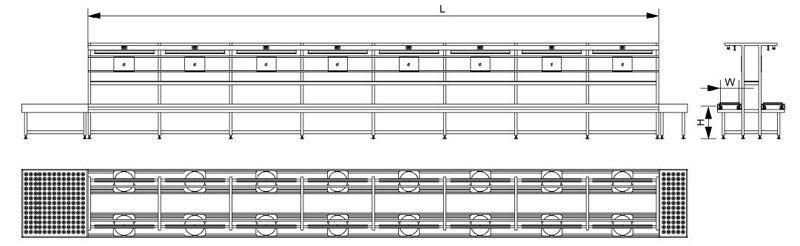

Model no. – chain center distance (W)- height(H)-length(L)- multiple speed
Order no. example (unit mm): C300-800-600-7000-3
| Specifications (unit: mm) | |
|---|---|
| length | max. 30m |
| height | 500-1500 |
| width | 500, 600, 700, 800, 900, 1000 |
| rack material | Aluminium profile |
| support leg material | Aluminium profile, rectangular tube |
| chain multiple speed | 2.5 times, 3 times |
| motor power | 0.37kw, 0.75kw, 1.5kw |

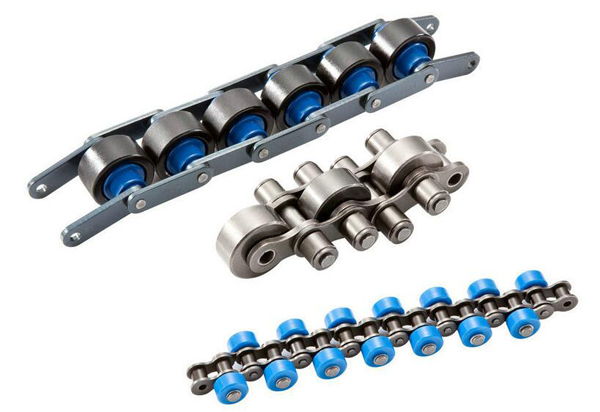

Mutiple chains are optional

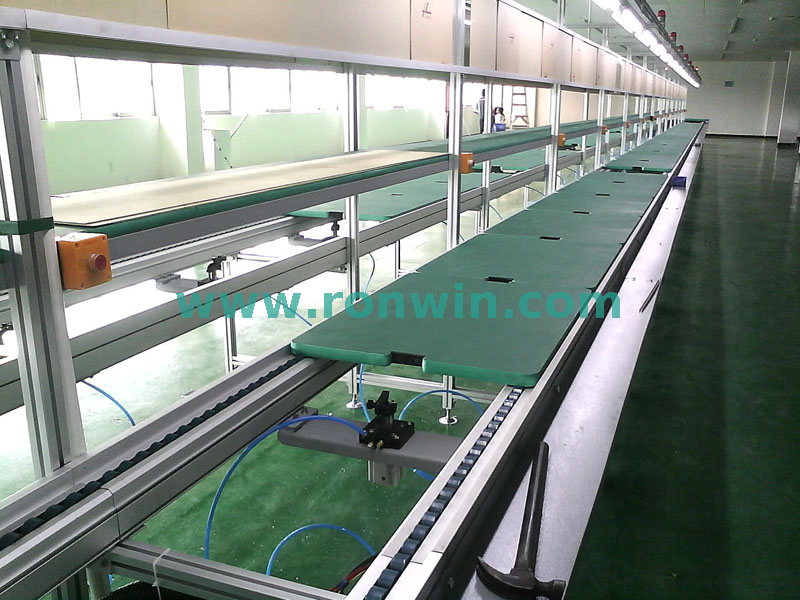

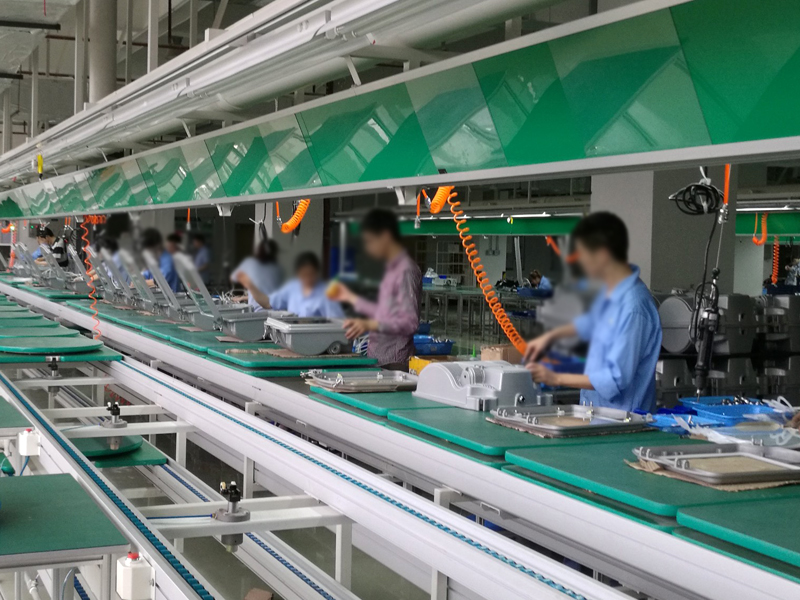

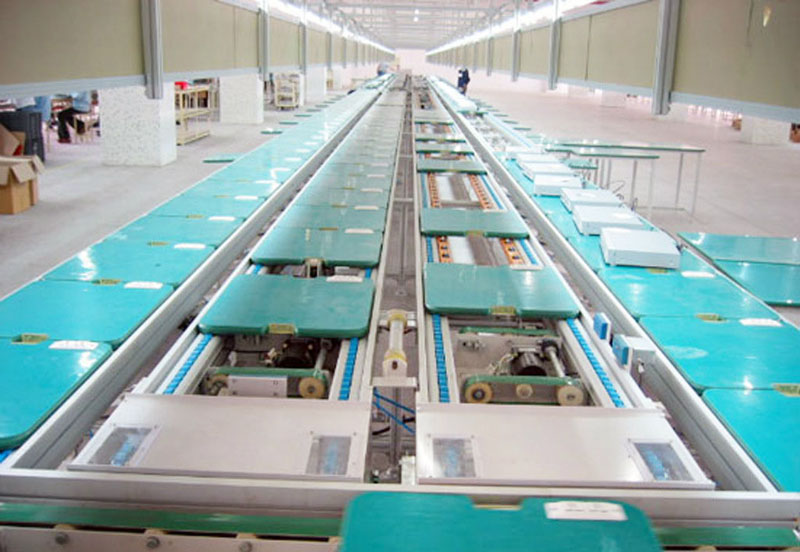

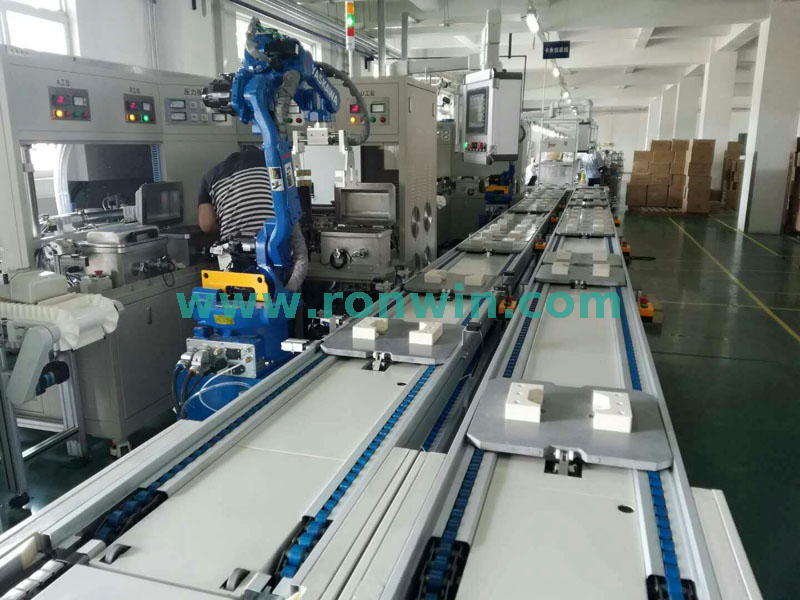

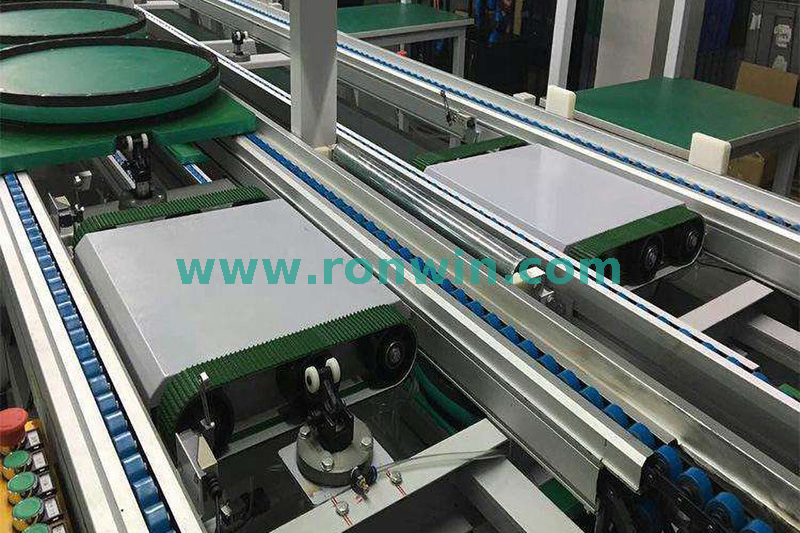

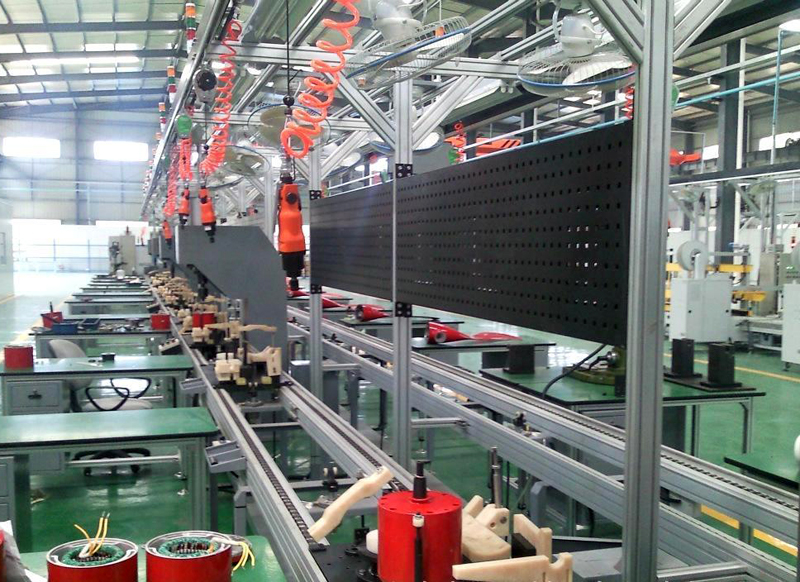

Some product pictures or applications
