Material: | |
---|---|
Mounting Method: | |
Surface Treatment: | |
Shaft Type: | |
Availability: | |

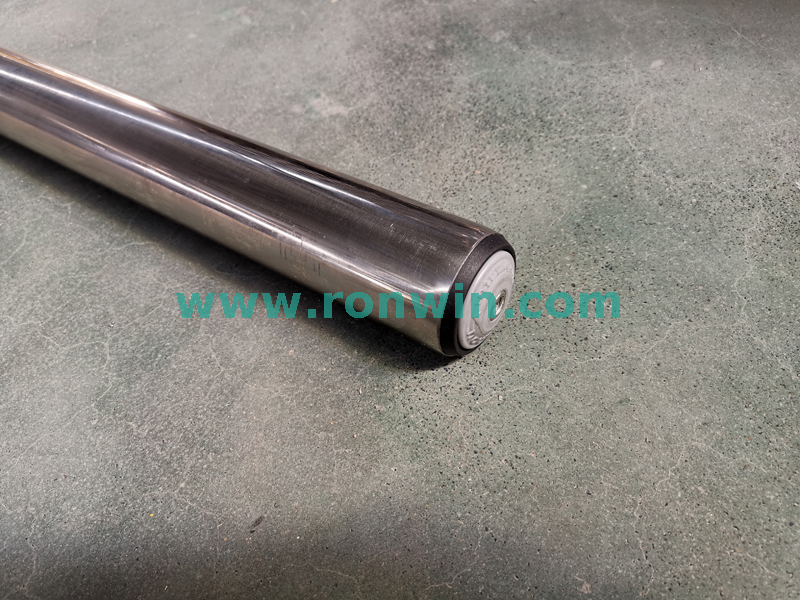

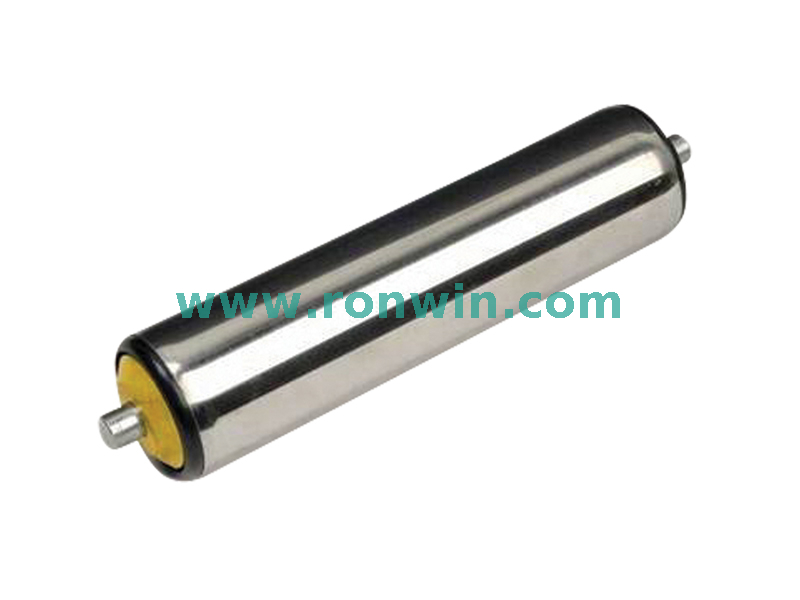

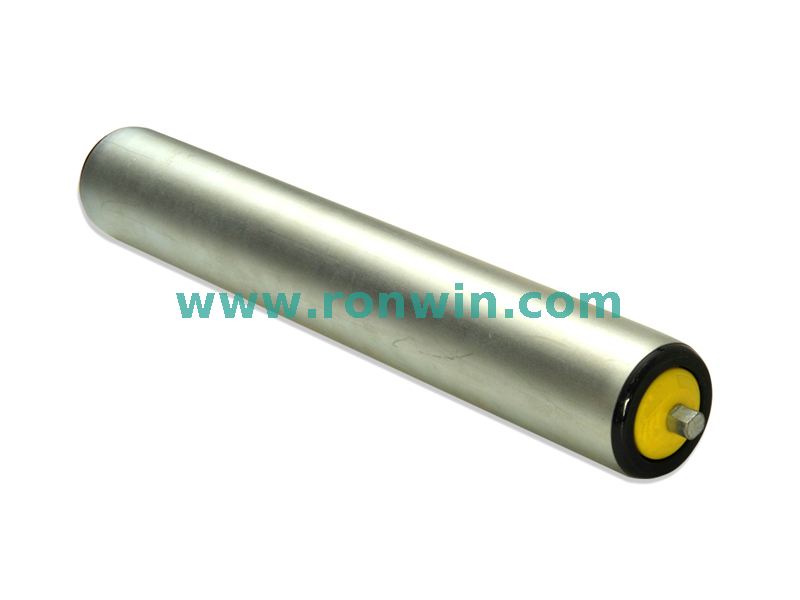

Character & Advantage of R1200 Universal Conveyor Roller
As the typical product in the gravity roller series, it is widely applied, especially in the carton conveying area, e.g. airport luggage handling and logistic distribution center.
Precision ball bearing, polymer bearing housing and end cap form the bearing unit which is very important. It is not only for good looking but also further more for the smooth and quiet running.
The end cap of roller resists dust and water splash well in working environment.
The design of polymer bearing housing makes it able to operate in some special environment.
The lubricating method of bearing could be oil lubricating or grease lubricating as requirement.
Suitable for the high speed conveying. Speed could vary according to diameter and length of roller, max speed up to 120m/min.
Temperature range -5℃ to +40℃.
Application Photos of R1200 Universal Conveyor Roller
Character & Advantage of R1200 Universal Conveyor Roller
As the typical product in the gravity roller series, it is widely applied, especially in the carton conveying area, e.g. airport luggage handling and logistic distribution center.
Precision ball bearing, polymer bearing housing and end cap form the bearing unit which is very important. It is not only for good looking but also further more for the smooth and quiet running.
The end cap of roller resists dust and water splash well in working environment.
The design of polymer bearing housing makes it able to operate in some special environment.
The lubricating method of bearing could be oil lubricating or grease lubricating as requirement.
Suitable for the high speed conveying. Speed could vary according to diameter and length of roller, max speed up to 120m/min.
Temperature range -5℃ to +40℃.
Application Photos of R1200 Universal Conveyor Roller
Diagram of R1200 Universal Conveyor Roller
Diagram of R1200 Universal Conveyor Roller
Dimensions & Alternative Material of R1200 Universal Conveyor Roller |
dia.×T | shaft dia. | female thread | spring loaded | flat milling | b×h | material |
Φ38×1.2 | Φ8/Φ10/Φ12/11hex | L=W+10 | E=W+9 | E=W+9 | 10×11 | steel, stainless steel |
Φ50×1.5 | Φ12/Φ15/11hex | L=W+10 | E=W+9 | E=W+9 | 10×11 | steel, stainless steel, Aluminium |
Φ50×2.5 | Φ12/Φ15/11hex | L=W+10 | E=W+9 | E=W+9 | 10×11 | PVC |
Φ60×2 | Φ12/Φ15/11hex | L=W+10 | E=W+9 | E=W+9 | 12×11 | steel, stainless steel, Aluminium |
Φ76×3 | Φ15/Φ20/11hex | L=W+12 | E=W+11 | E=W+11 | 16×15 | steel |
Φ80×3 | Φ20 | L=W+12 | E=W+11 | E=W+11 | 16×15 | steel |
Dimensions & Alternative Material of R1200 Universal Conveyor Roller |
dia.×T | shaft dia. | female thread | spring loaded | flat milling | b×h | material |
Φ38×1.2 | Φ8/Φ10/Φ12/11hex | L=W+10 | E=W+9 | E=W+9 | 10×11 | steel, stainless steel |
Φ50×1.5 | Φ12/Φ15/11hex | L=W+10 | E=W+9 | E=W+9 | 10×11 | steel, stainless steel, Aluminium |
Φ50×2.5 | Φ12/Φ15/11hex | L=W+10 | E=W+9 | E=W+9 | 10×11 | PVC |
Φ60×2 | Φ12/Φ15/11hex | L=W+10 | E=W+9 | E=W+9 | 12×11 | steel, stainless steel, Aluminium |
Φ76×3 | Φ15/Φ20/11hex | L=W+12 | E=W+11 | E=W+11 | 16×15 | steel |
Φ80×3 | Φ20 | L=W+12 | E=W+11 | E=W+11 | 16×15 | steel |
