GA-02
RONWIN
HS Code: 8431390000

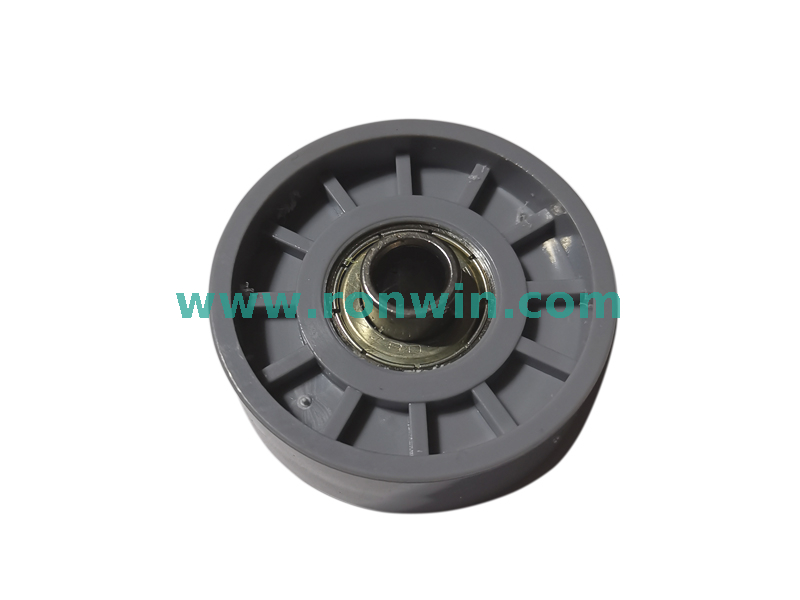

The skate wheel, also known as a fully wheel, flo0wheel, or universal guide wheel, is a core component specifically designed for light-duty, non-powered conveyor systems. Renowned for its exceptional flexibility, simple structure, and reliable performance, it is widely used in various material handling scenarios, making it an ideal solution for cost-effective and efficient planar conveying.
Equipped with precision deep-groove ball bearings, ensuring extremely flexible and smooth rotation with a minimal friction coefficient.
Enables effortless multi-directional conveying and turning of goods, significantly reducing the labor intensity of manual pushing.
Features a simple overall design with few components, resulting in a very low failure rate and easy maintenance.
Lightweight for easy installation and integration, yet possesses sufficient mechanical strength to meet daily industrial use requirements.
Specifically designed for conveying goods with flat and regular bottoms (e.g., cartons, pallets, plastic containers).
The perfect accessory for non-powered telescopic conveyors, roller conveyors, side guards of belt conveyors, and specific turning/merging areas.
Available in various specifications (e.g., wheel diameter, width) to suit different load and speed requirements.

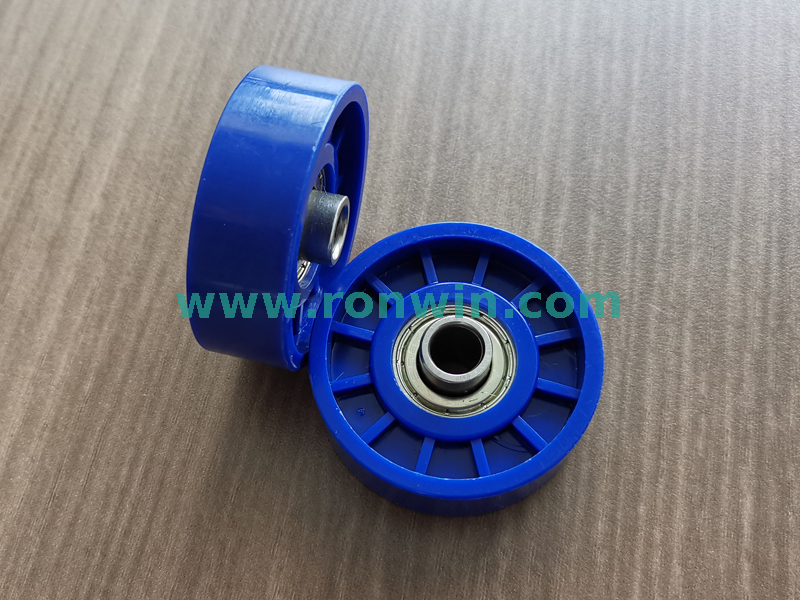

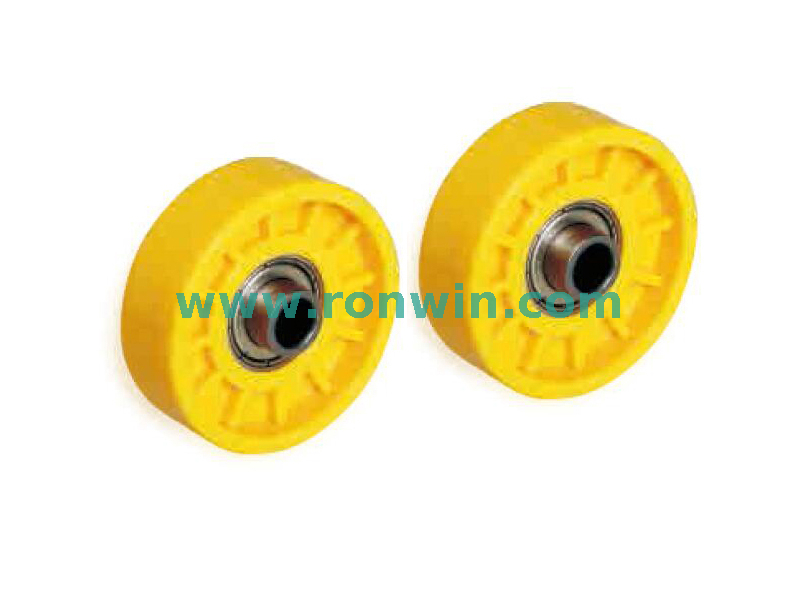

Offered in multiple colors (e.g., yellow, blue, grey) for easy area demarcation, aesthetics, and equipment matching.

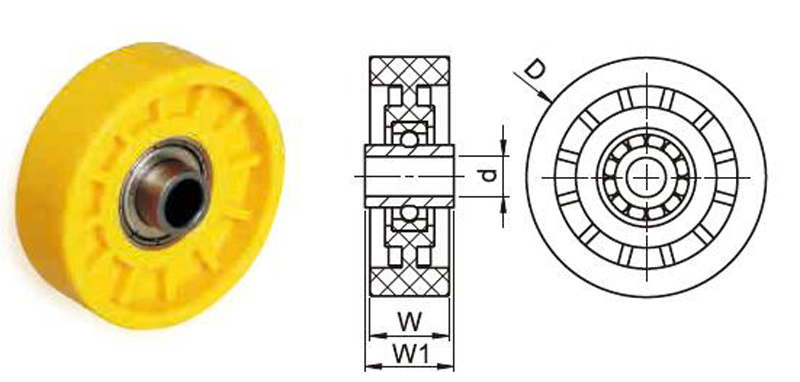

Specifications of skate wheel GA-02 series
| Model No. | Material | d | D | W | W1 | Static Load (kg) | Dynamic Load (kg) | Note |
| GA-02 | ABS | Φ8 | Φ48 | 16 | 18 | 40 | 60 | reinforcing rib |
| GA-02A | ABS | Φ5 | Φ22 | 20 | 25.5 | 10 | 15 | standard |
| GA-02B | ABS | Φ8 | Φ26 | 8 | 18 | 40 | 60 | standard |
| GA-02C | ABS | Φ8 | Φ30 | 24 | 28.5 | 40 | 60 | lengthened and widened |
| GA-02D | ABS | Φ8 | Φ38 | 14 | 18 | 40 | 60 | standard |
| GA-02E | ABS | Φ8 | Φ38 | 14 | 28.5 | 40 | 60 | lengthened |
| GA-02F | ABS | Φ8 | Φ38 | 24.5 | 28.5 | 40 | 60 | lengthened and widened |
| GA-02G | ABS | Φ8 | Φ48 | 16 | 18 | 40 | 60 | solid |
| GA-02H | ABS | Φ8 | Φ48 | 16 | 7 | 40 | 60 | reinforcing rib |
| GA-02J | ABS | Φ8 | Φ48 | 16 | 28.5 | 40 | 60 | lengthened |
| GA-02K | ABS | Φ8 | Φ48 | 16 | 50 | 40 | 60 | longest |
| GA-02L | ABS | Φ8 | Φ48 | 16 | / | 40 | 60 | without bearing |
| GA-02M | ABS | Φ12 | Φ48 | 16 | 8 | 40 | 60 | 6001 |
| GA-02N | ABS | Φ8 | Φ70 | 16 | 28.5 | 40 | 60 | standard |
Non-Powered Conveyor Systems: Serves as the main load-bearing and guiding wheel, forming low-cost gravity chutes.
Conveyor Guards: Installed on the sides of powered or non-powered conveyors to effectively prevent jamming or damage during transport and assist in turning.
Non-Powered Telescopic Conveyors: Acts as a key component, ensuring smooth conveying during both extension and retraction.
Turning and Diverting Areas: Guides goods smoothly through turns on conveyor lines or sorting tables, preventing blockages.
Assembly Lines, Packaging Lines, and Logistics Sorting Centers: Suitable for various light-duty environments involving manual or semi-automatic material handling.
The skate wheel is an indispensable practical component in modern light industry and logistics. With its characteristic of "small size, significant impact," it solves complex conveying challenges through simple physical principles, making it an economical choice for enhancing operational efficiency and optimizing conveying processes.
Export to oversea marktet in bulk regularly.
