WE-01/WE-02
RONWIN
HS Code: 8431390000
Double Layer Conveyor System Plastic Skate Wheel 90 degree Shift
Introduction: WE-01/WE-02 skate wheel are mainly applied in the curve or confluence part of the conveyor system, small size and light weight. Simple structure and running smoothly. It is be composed by two separated layers. It could realize 90° shift of goods. The bottom of goods must be flat and rigid.

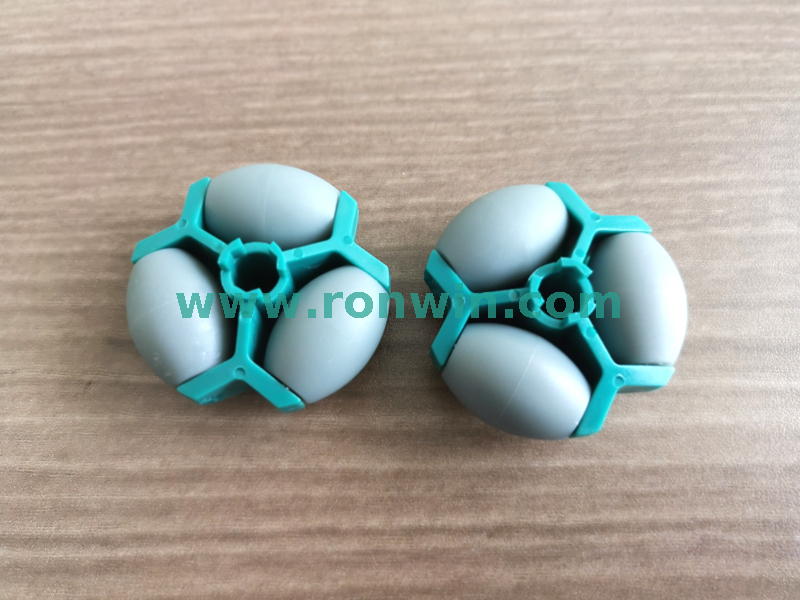

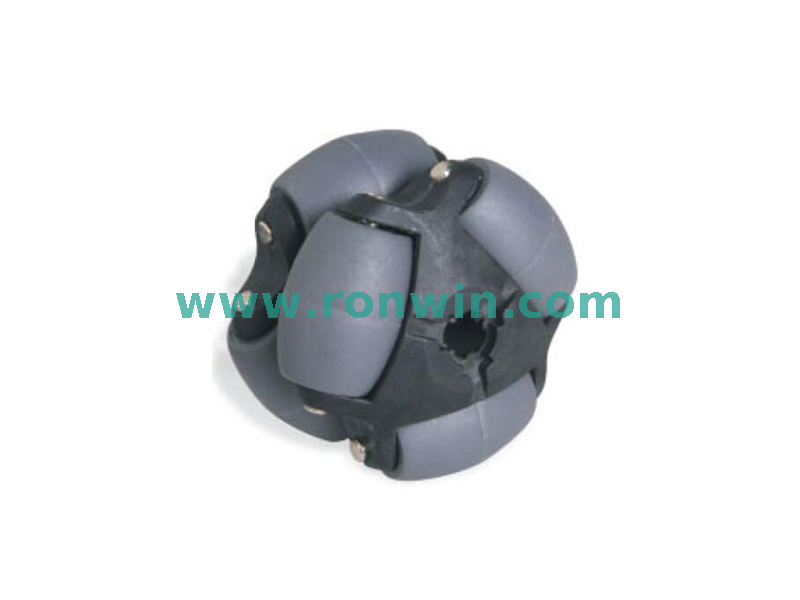

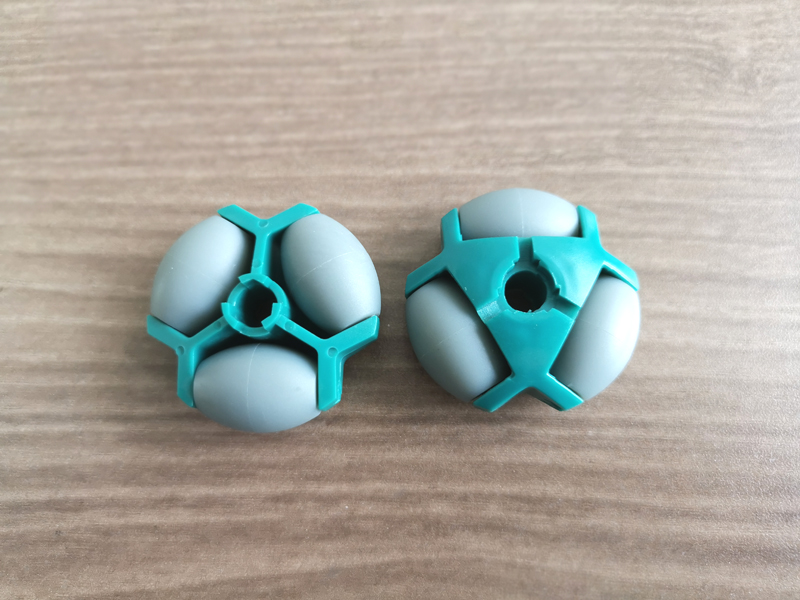

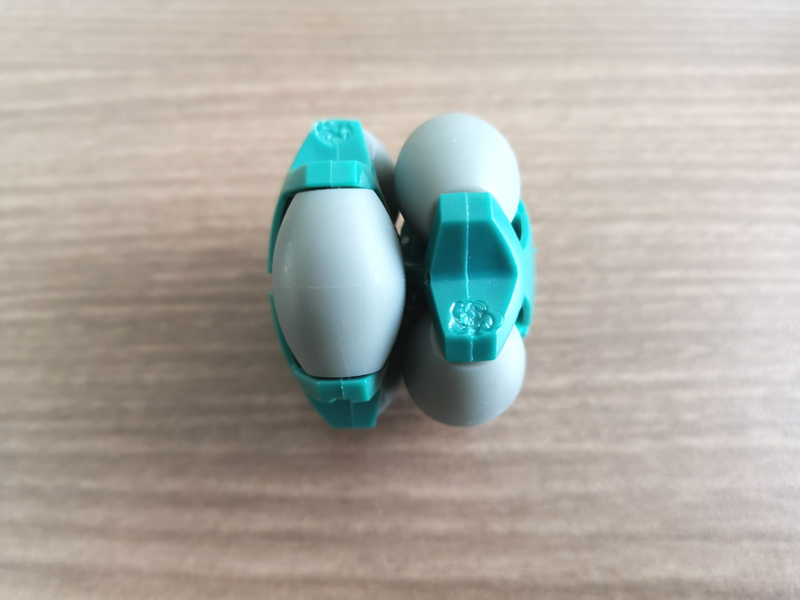

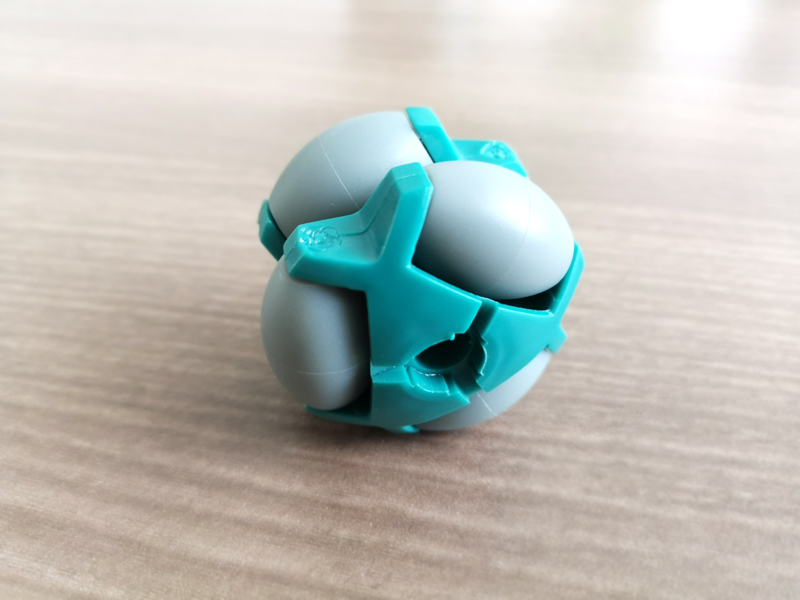

Product photos

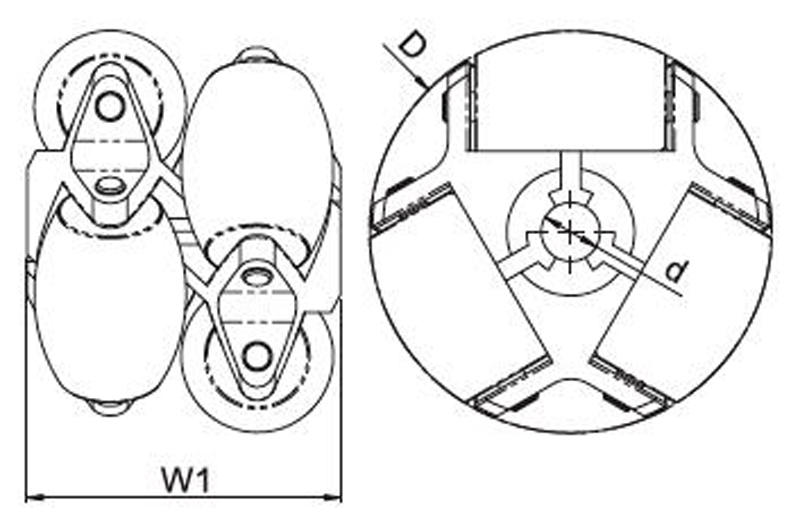

Dimensions
Dimensions of Skate Wheel WE-01/WE-02 | |||||||
|---|---|---|---|---|---|---|---|
| Model No. | Material | d | D | W1 | Static Load (kg) | Dynamic Load (kg) | Weight (g) |
| WE-01 | POM | Φ12.5 | Φ82 | 68 | 20 | 25 | 107 |
| WE-02 | POM | Φ8.3 | Φ48 | 43 | 15 | 20 | 29 |

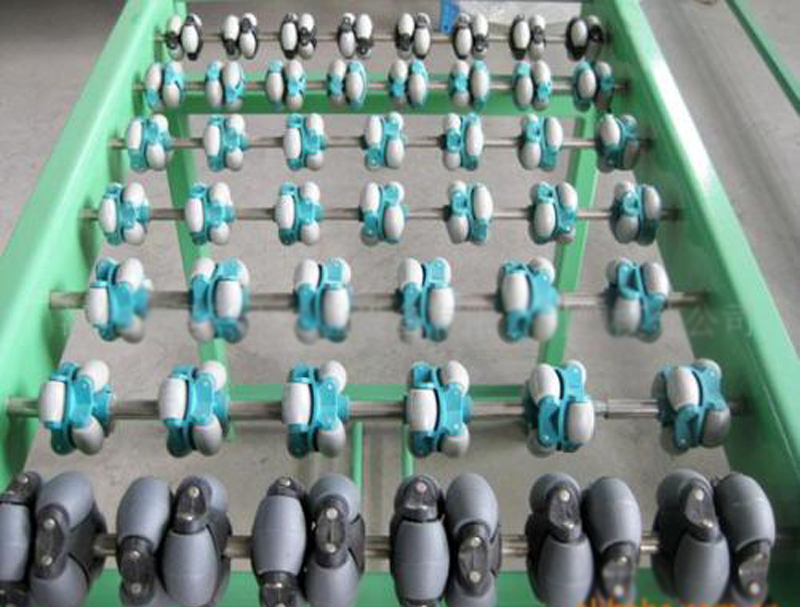

Application
