Do you manage high inventory volumes with a limited range of SKUs? A pallet flow racking system is one of the most efficient solutions for high-density warehouse storage and fast inventory rotation.
The Longwei Automation Modular Gravity Roller Conveyor is a core component designed specifically for pallet flow racking systems. It enables pallets to move smoothly along inclined lanes using gravity, supporting stable First-In, First-Out (FIFO) inventory management.
This modular system integrates gravity roller rails, brake rollers, pallet separators, entrance guide guardrails, and end stoppers into a complete pallet flow solution for warehouse storage and material handling applications.
Depending on warehouse layout and storage requirements, the system can be configured for lane depths of 3–4 pallets, 9–10 pallets, or 20+ pallets, with full customization based on pallet size, load capacity, and operational workflow.
Question | Answer |
|---|---|
Can it support my warehouse load? | Yes, designed for heavy-duty pallet handling applications |
Is it suitable for FIFO inventory? | Yes, fully supports FIFO pallet flow systems |
Can it integrate with racking systems? | Yes, rack-integrated modular design |
Can it be customized? | Yes, based on pallet size, load, and layout |
Is pallet movement controlled? | Yes, brake rollers ensure safe speed control |
Does it require power? | No, gravity-driven system |
Benefit | Value for Your Warehouse |
|---|---|
FIFO Inventory Flow | Supports first-in, first-out stock rotation |
High Storage Density | Stores more pallets in a compact footprint |
Gravity-Driven Operation | No powered drive system required |
Reduced Forklift Travel | Shortens loading and picking routes |
Lower Labor Demand | Pallets move automatically along inclined lanes |
Controlled Pallet Movement | Brake rollers help regulate travel speed |
Modular Installation | Easy to install, adjust, and expand |

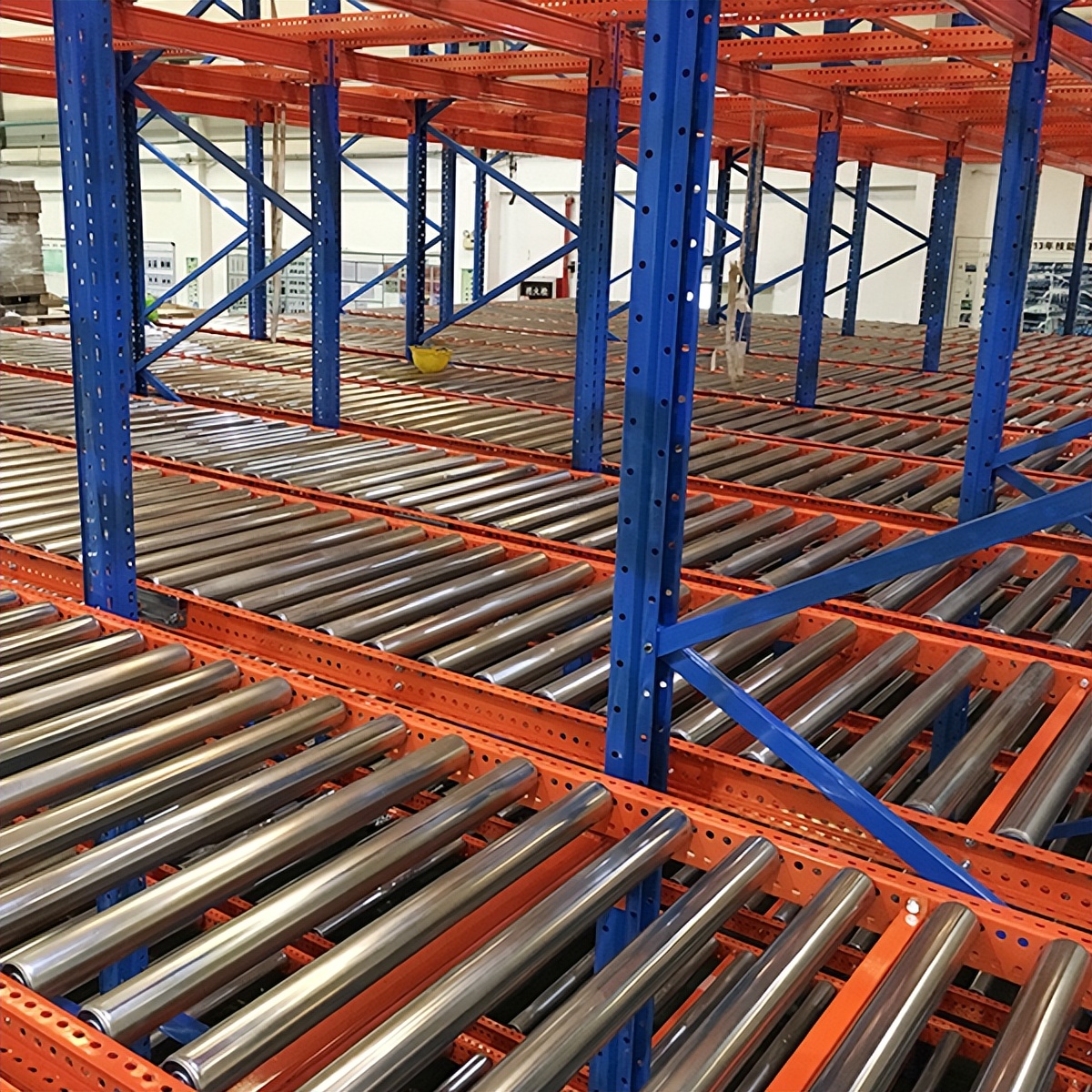

Pallet flow racks operate on inclined lanes fitted with wheeled or roller rails. Pallets glide automatically from the replenishment side to the picking face, reducing travel distance and improving warehouse throughput.
The Longwei Automation Modular Gravity Roller Conveyor is widely used in warehouse storage and industrial material handling systems where efficient pallet movement and FIFO inventory control are required.
Used for high-volume pallet storage and fast picking operations. The system improves storage density while reducing forklift travel distance and handling time.
Supports fast-moving SKU environments where efficient order picking and continuous pallet replenishment are required.
Suitable for low-temperature environments where stable pallet flow and durable mechanical performance are essential.
Ideal for FIFO inventory management of perishable goods, ensuring proper stock rotation and reduced product waste.
Used as buffer storage between production processes to improve material flow efficiency and production continuity.
Helps streamline pallet handling in loading, unloading, and sorting operations, improving overall warehouse throughput.
Suitable for heavy palletized components storage, ensuring stable movement and safe handling of industrial parts.
Supports in-process material handling and workstation flow, improving operational efficiency in production environments.
20+ years of experience in roller and pallet flow system manufacturing
In-house production ensures stable quality and consistent delivery
Engineering support for pallet flow racking system design
Widely used in warehouses, distribution centers, and logistics facilities
Longwei Automation provides gravity rollers engineered for pallet flow racking and storage systems. These self produced rollers are designed to support smooth, controlled movement of pallets, containers, and heavy loads within racking lanes.
Roller Diameter | Wall Thickness |
|---|---|
OD60 mm | 2 mm, 3.0 mm |
OD63.5 mm | 2 mm, 3.0 mm |
OD76 mm | 2.5 mm, 3 mm |
Our gravity rollers are supplied ready for installation and designed for reliable integration with racking infrastructure.
The standardized multi-hole rack design helps improve delivery efficiency and installation convenience. It allows the roller positions to be adjusted more easily when installing brake rollers and helps simplify roller rail installation on pallet racking systems.
Feature | Benefit |
|---|---|
Standardized Multi-hole Design | Easier adjustment of roller positions |
Ready-to-install Structure | Faster onsite installation |
Brake Roller Position Adjustment | More flexible speed control configuration |
Modular Rail Format | Suitable for different racking layouts |
Practical Installation Design | Reduces installation complexity |

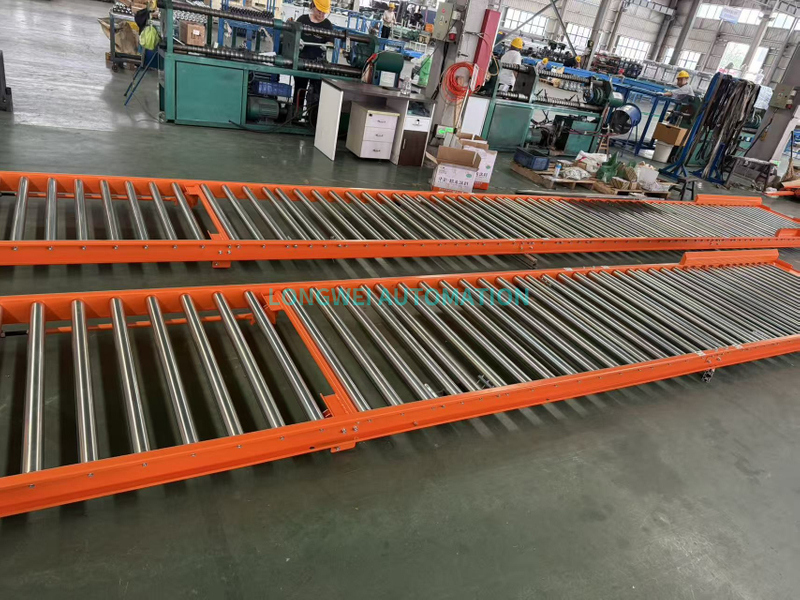

Longwei Automation modular gravity roller rails are supplied as pre-assembled units. After delivery, they can be mounted directly onto shelving or racking frames, reducing onsite assembly time and labor cost.
Feature | Benefit |
|---|---|
Pre-assembled Roller Rail | Reduces onsite installation work |
Modular Design | Easy to handle, install, and replace |
Direct Rack Installation | Suitable for pallet flow racking systems |
Consistent Assembly | Improves installation accuracy |
Scalable Structure | Supports future warehouse expansion |

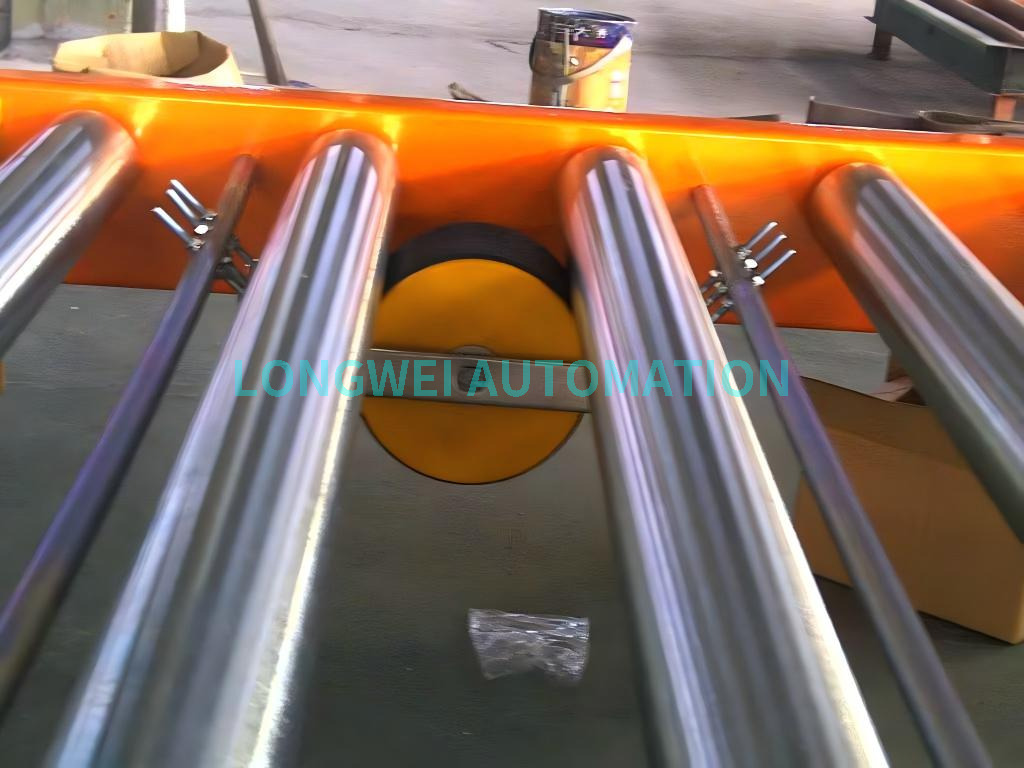

A brake roller, also known as a speed controller, is installed within roller rail lanes to help control pallet movement speed. This prevents pallets from moving too quickly along inclined lanes and supports safer unloading at the picking side.
Brake Roller Range | Application |
|---|---|
500–1000 kg | Standard pallet flow applications |
1000–1500 kg | Heavier pallet flow applications |
Function | Purpose |
|---|---|
Speed Control | Helps regulate pallet travel speed |
Safe Pallet Flow | Reduces uncontrolled pallet acceleration |
Load Protection | Helps prevent impact damage |
Operator Safety | Supports safer picking and unloading |
FIFO Stability | Maintains smooth pallet movement through the lane |
Operators can continuously load pallets into the system, where pallets accumulate in sequence until the lane reaches its designed storage capacity.

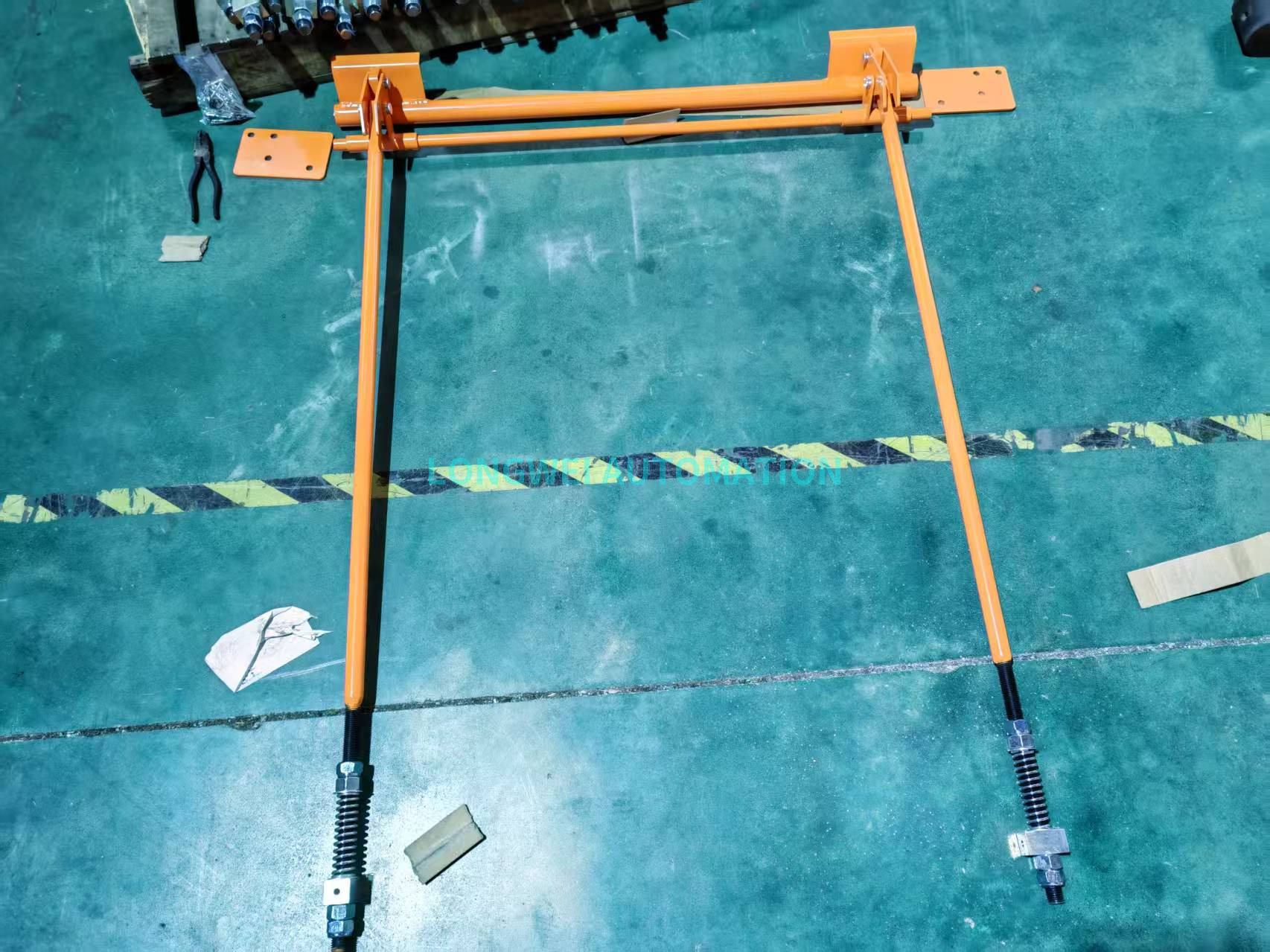

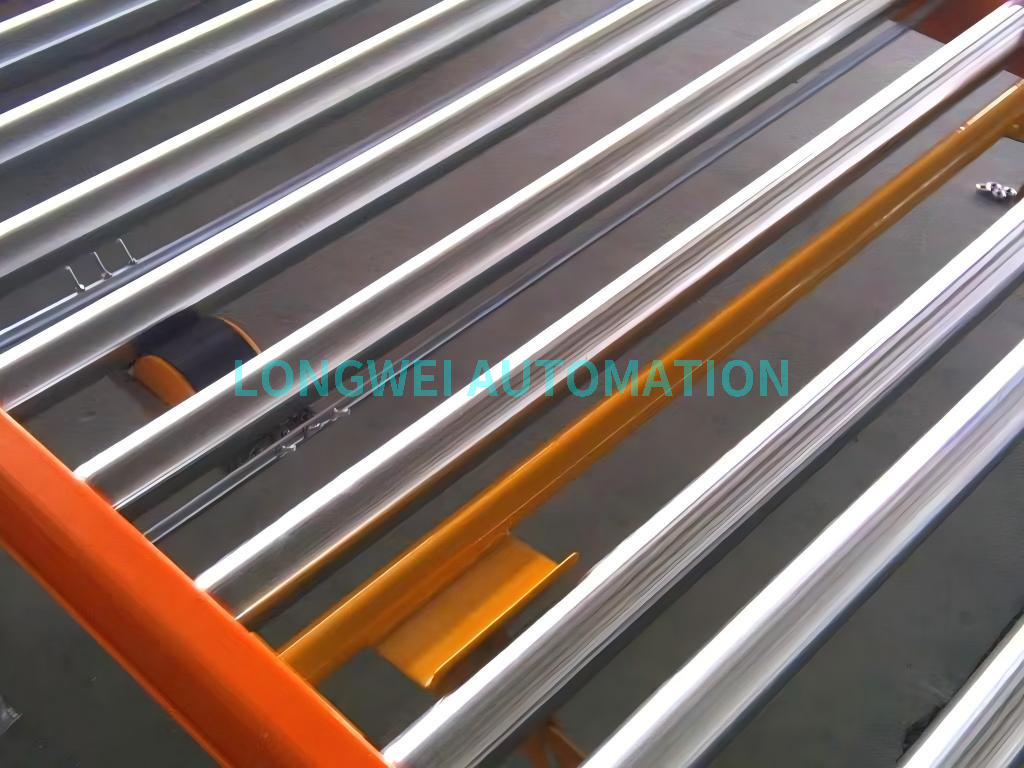

In deep-lane pallet flow systems, pallets may generate pressure against each other. The pallet separator helps create space and separation between pallets by holding back rear pallets while allowing the front pallet to be removed safely.
Benefit | Description |
|---|---|
Reduces Back Pressure | Prevents excessive pressure between pallets |
Improves Safety | Supports safer unloading in deep lanes |
Protects Goods | Helps reduce palletized load damage |
Enhances Throughput | Makes pallet picking smoother |
Supports Deep-lane Storage | Suitable for high-density pallet flow systems |
By integrating pallet separators into racking systems, warehouses can improve operational safety, storage density, and pallet flow efficiency.
Item | Specification |
|---|---|
Product Name | Modular Gravity Roller Conveyor |
Application | Pallet Flow Racking System |
System Type | Gravity Roller Rail / Pallet Flow Rail |
Inventory Method | FIFO / LIFO |
Roller Diameter | OD60 / OD63.5 / OD76 mm |
Brake Roller Range | 500–1000 kg / 1000–1500 kg |
Lane Depth | 3–4 pallets, 9–10 pallets, or 20+ pallets depending on project design |
Main Components | Gravity rollers, roller rails, brake rollers, pallet separators, entrance guide guardrails, end stoppers |
Installation Type | Modular / Ready for installation |
Drive Method | Gravity-driven |
Custom Design | Available according to pallet size, load weight, lane depth, and racking layout |
Engineering Support | Simulation, factory testing, parameter optimization, and installation guidance |
Customizable Item | Availability |
|---|---|
Roller Diameter | Customizable based on application |
Roller Position | Adjustable through rail design |
Roller Rail Length | Project-based |
Lane Depth | Project-based |
Decline Angle | Designed according to operating conditions |
Brake Roller Position | Project-based |
Brake Roller Quantity | Project-based |
Damping Force Calibration | Based on testing requirements |
Pallet Separator Configuration | Project-based |
Entrance Guide Guardrails | Available |
End Stopper | Available |
Installation Layout | Project-based |
Every pallet flow project is different. Longwei Automation provides design support based on pallet specifications, load weight, storage capacity, and actual warehouse workflow.
Longwei Automation provides more than standard components. We support customers with engineering design and testing for gravity flow racking systems.
Parameter | Purpose |
|---|---|
Lane Depth | Match storage capacity requirements |
Decline Angle | Ensure smooth and controlled pallet movement |
Pallet Specifications | Confirm roller spacing and rail configuration |
Load Weight | Select suitable roller and brake roller configuration |
Roller Spacing | Improve pallet support and stability |
Brake Roller Placement | Control pallet speed through the lane |
Damping Force Calibration | Improve braking performance and safety |
Accessory Installation | Ensure correct use of separators, guide rails, and end stoppers |
Before shipment, Longwei Automation validates key design parameters through in-factory testing to help ensure safe, smooth, and reliable operation from the start.
Reliable pallet flow systems depend on reliable roller and rail performance. Longwei Automation manufactures rollers in-house and applies inspection procedures to support consistent quality.
Inspection Item | Quality Objective |
|---|---|
Roller Dimension Inspection | Ensure consistent dimensions for installation |
Roller Rotation Check | Confirm smooth rolling performance |
Rail Assembly Inspection | Verify correct assembly before delivery |
Brake Roller Function Test | Check speed control performance |
Pallet Flow Testing | Validate movement under simulated conditions |
Accessory Inspection | Check separators, guide rails, and end stoppers |
Final Shipment Inspection | Ensure product condition before packing |
By controlling roller production and testing key components before delivery, Longwei Automation helps customers reduce installation risks and improve long-term system reliability.

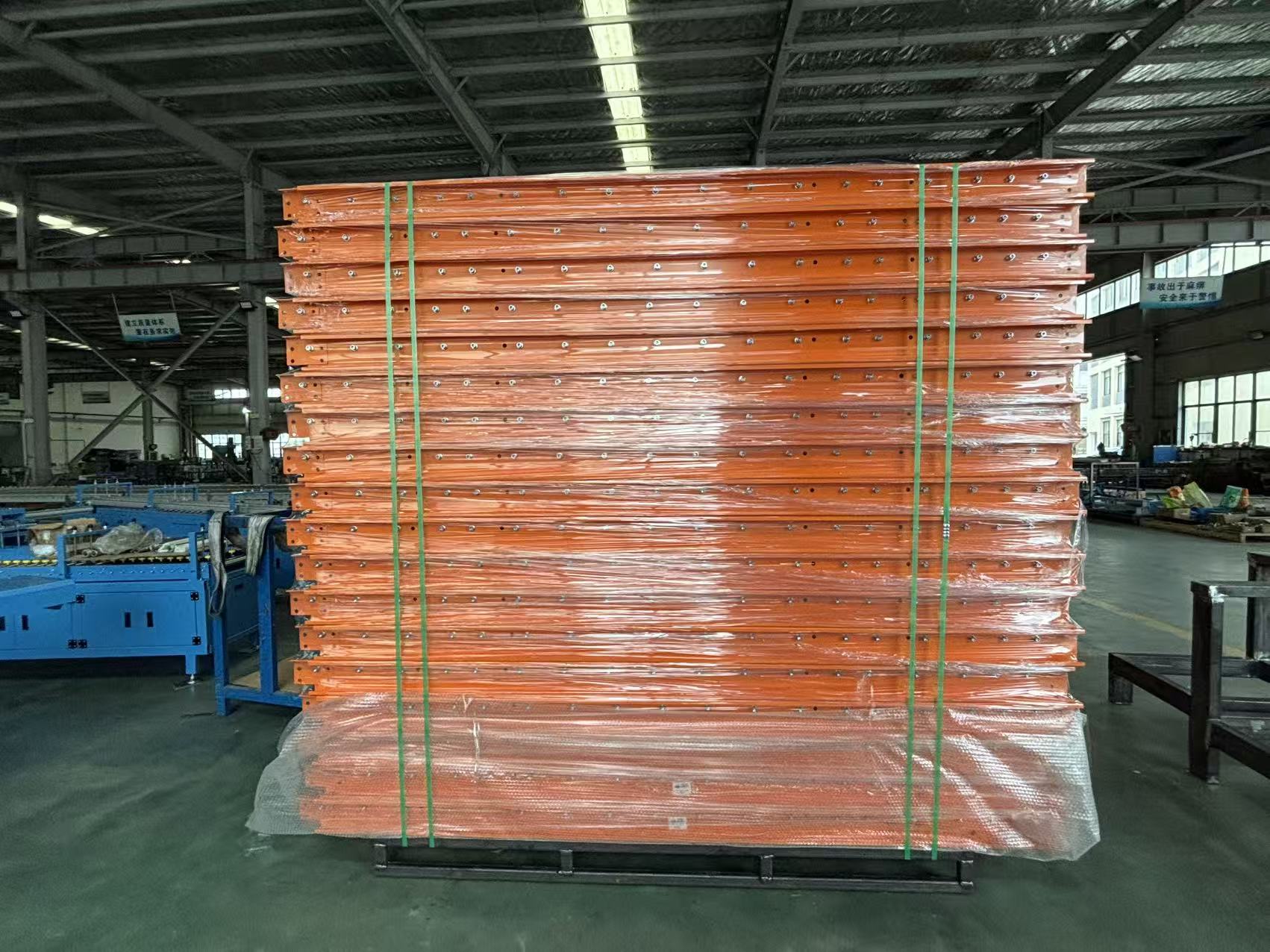

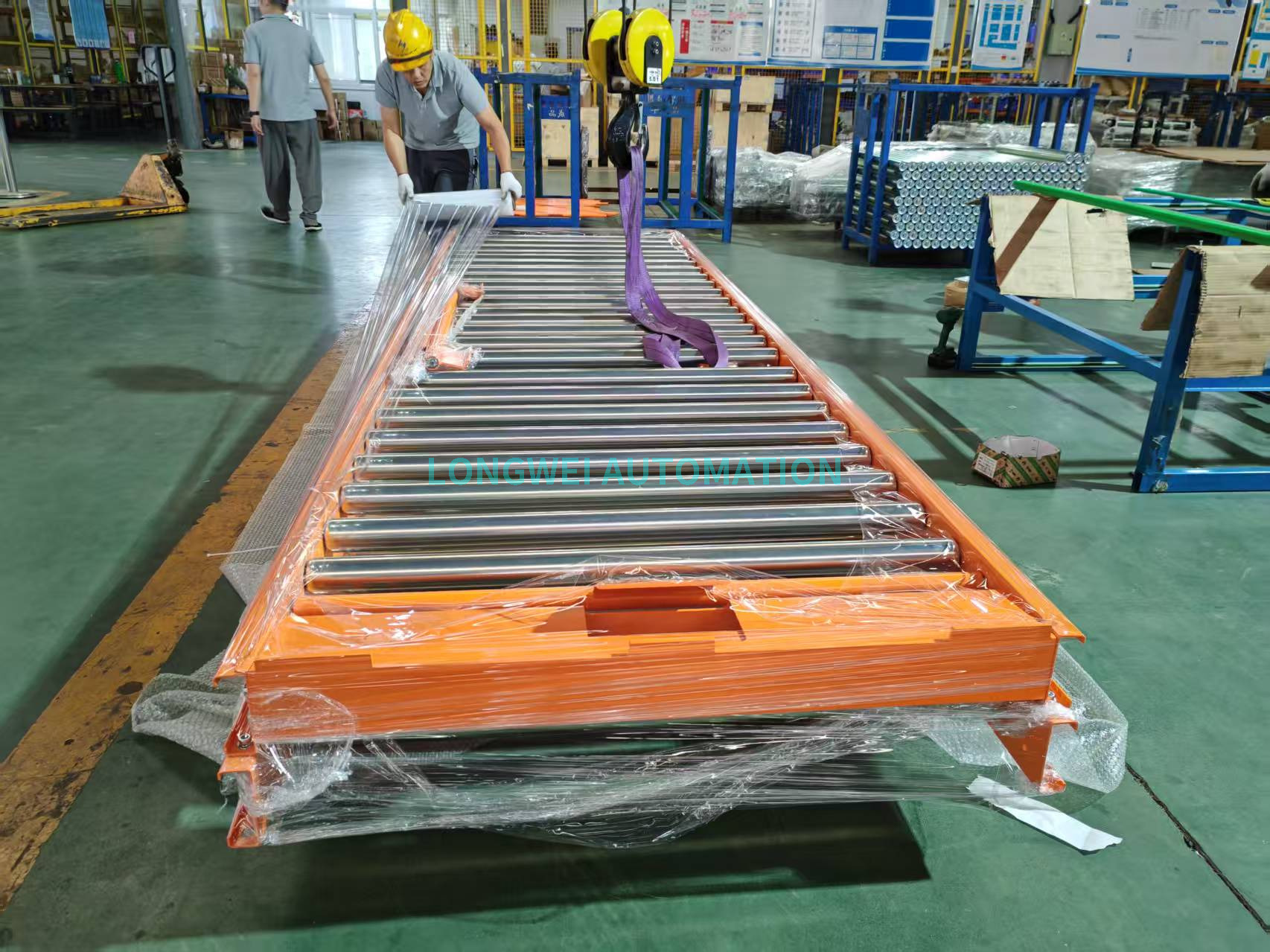

Longwei Automation packs roller rails in modules to save container space and reduce international shipping costs. Modular packing also helps protect roller rails during transportation and makes unloading and installation more efficient.
Packaging Benefit | Value |
|---|---|
Modular Packing | Easier handling and installation |
Container Space Saving | Helps reduce international freight cost |
Better Product Protection | Keeps roller rails safer during transportation |
Faster Unloading | Improves onsite efficiency |
Installation Convenience | Modules are ready for rack installation |
Longwei Automation offers a comprehensive solution for gravity flow racking systems, centered on high-performance rollers and modular roller rails.
Component | Function |
|---|---|
Gravity Rollers | Support smooth pallet movement |
Roller Rails | Form the main pallet flow lane |
Brake Rollers | Control pallet travel speed |
Pallet Separators | Hold back rear pallets during unloading |
Entrance Guide Guardrails | Guide pallet entry into the lane |
End Stoppers | Prevent pallets from moving beyond the unloading area |
Installation Accessories | Support complete system setup |
Beyond supplying components, Longwei Automation provides design support, engineering simulation, factory testing, parameter optimization, and installation guidance to help customers build safe and efficient pallet flow systems.
It is used in pallet flow racking systems to move pallets from the loading side to the picking side using gravity. It helps improve storage density and supports FIFO inventory rotation.
Yes. The system is designed for First-In, First-Out pallet flow applications, making it suitable for high-turnover SKU storage.
Longwei Automation offers OD60 mm, OD63.5 mm, and OD76 mm gravity rollers for pallet flow racking applications.
The available brake roller ranges include 500–1000 kg and 1000–1500 kg.
Yes. The modular roller rails are supplied ready for installation and can be mounted directly onto shelving or racking frames.
Yes. We can customize the solution based on lane depth, decline angle, pallet size, load weight, roller spacing, brake roller placement, and racking layout.
Yes. Longwei Automation provides project evaluation, simulation, in-factory testing, parameter optimization, and installation guidance.
Modular packing saves container space, reduces international shipping costs, protects roller rails during transport, and makes onsite unloading and installation easier.
