An inclined belt conveyor is essential for moving materials between floors. It transports items up or down at an angle, ideal for bulk materials, boxes, or small components. Businesses use incline conveyors to save space, increase safety, and boost operational efficiency. With specialized belts, sidewalls, and safety barriers, products are securely transported.

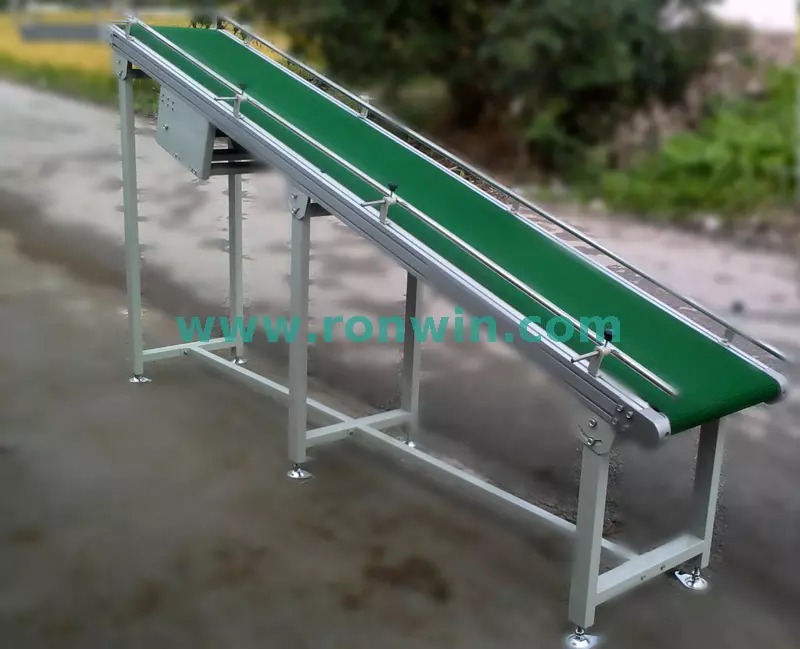

The RONWIN B200 Inclined/Declined Belt Conveyor is a reliable solution for factories, warehouses, and e-commerce centers. Its flexible design makes handling height changes effortless.
Inclined belt conveyors carry materials between floors using a belt and rollers, optimizing space and improving safety.
Core components include the conveyor belt, drive pulley, rollers, and motor. Safety features such as guards, holdback devices, and emergency stops protect workers.
Belts come in various materials and structures to handle different loads, prevent slippage on steep inclines, and support diverse applications.
Inclined conveyors range from standard gentle-slope systems to specialized designs for high angles or confined spaces.
Routine maintenance ensures long-term performance, prevents breakdowns, and maximizes safety.
An inclined belt conveyor moves goods up or down efficiently. The belt stretches between a drive pulley and a tail pulley, carrying items along a slope. Commonly used in factories, warehouses, farms, and food processing facilities, it handles boxes, powders, pellets, and small parts.
Materials & Features:
Belts may be rubber, canvas (nylon), PVC, PU, steel wire, or metal mesh.
Cleats and sidewalls prevent rollback and spillage.
Optimal incline angles prevent material slippage; the RONWIN B200 can operate safely up to 30°, with 13° recommended for most tasks.
The system relies on a motor to drive the pulley, moving the belt along rollers. Materials are loaded at one end and discharged at the other, with the empty belt returning to start. Rollers reduce friction and ensure smooth operation.
Operational Flow:
Motor powers the drive pulley.
Drive pulley moves the belt through friction.
Items travel along the conveyor to the desired height.
Rollers support the belt and reduce tension issues.
Proper belt tension and tracking prevent slippage or material spillage.
| Component | Function |
|---|---|
| Conveyor Belt | Moves items; cleats/sidewalls prevent slippage |
| Drive Pulley | Powered by motor; drives belt |
| Tail Pulley | Maintains belt tension |
| Rollers | Reduce friction and support belt movement |
| Frame | Strong steel/aluminum/stainless structure; keeps system stable |
| Motor & Gearbox | Provide consistent power |
| Sidewalls & Guides | Keep materials on the belt during transport |
Safety Tip: Always follow lockout procedures before maintenance. Only trained personnel should operate or service the conveyor.
Inclined belt conveyors help move things between different heights fast and safely. They are used in factories, warehouses, and farms. The incline belt conveyor makes it easier to move heavy or big items without lifting.
An inclined conveyor has many important parts. The drive unit gives power with a motor and gearbox. Pulleys help move the belt and keep it tight. Rollers and belt supports stop the belt from sagging. They also help the belt move smoothly. The conveyor belt carries things up or down the slope. Controls and sensors watch the system and keep it safe. Support structures hold all the parts steady.
The RONWIN B200 Inclined/Declined Belt Conveyor has a strong frame. It is made from steel, stainless steel, or aluminum. Its support legs use steel tubes to stay stable. The drive can be a motor reducer or electric roller. This lets you install it in different ways. Safety features like fences and train edges stop things from falling off. Holdback devices stop items from sliding back if power goes out. This is very important for inclined conveyors. Belt tracking systems and cleaners keep the belt straight and clean.
Tip: Always make sure the conveyor has guards and emergency stops to keep workers safe.
Designers must think about the angle, belt width, and load size. The B200 can work at angles up to 30 degrees. But 13 degrees is best for most jobs. The belt width can be from 100mm to 1500mm. It can carry up to 100kg for each meter.
The RONWIN B200 supports various belts:
Rubber: Durable and flexible for rough materials.
Canvas/Nylon: Strong, low-stretch, suitable for most loads.
Steel Cord: High-strength for heavy-duty operations.
PVC/PU: Smooth surface, resistant to chemicals, ideal for fine materials.
Special belts with cleats or sidewalls are available for steep inclines to prevent rollback. Multi-layered and reinforced belts enhance durability and performance.
Gentle slope up to 18°.
Smooth or cleated belts.
Suitable for boxes, bags, and bulk items.
| Feature | Standard | Steep/Specialized |
|---|---|---|
| Incline Angle | ≤18° | Up to 30°+ |
| Space Requirement | Longer footprint | Compact |
| Belt Type | Smooth/Cleated | Cleated with sidewalls |
| Capacity | Higher load per meter | Slightly lower |
| Frame Type | Truss or channel | Channel frame only |
2. Specialized Systems
Incline Cleated Belt: Handles steep slopes; ideal for grains, sand, pellets.
Modular Belt: Easy maintenance; used in food processing.
Curved Belt: Navigates corners or tight spaces.
Vertical Conveyor: Lifts items vertically to save floor space.
The RONWIN B200 supports multiple belt types, angle adjustments, and drive options, making it versatile for diverse industrial needs.
Inclined belt conveyors are used in many industries. They help move things between different heights. Construction workers use them to carry heavy things like sand and cement. These machines also move bricks, steel beams, and broken building parts. Food and beverage companies use vertical conveyors to keep food clean and move it around. Farms use incline conveyor systems to move crops and supplies across big fields. E-commerce warehouses use strong inclined conveyors to move boxes, furniture, and office supplies safely.
Here is a table that shows how each industry uses inclined belt conveyors:
Industry | Material Types Handled | Main Tasks and Benefits |
|---|---|---|
Construction | Aggregates, cement, bricks, steel | Move things up and down, save space, safer work |
Food & Beverage | Food products | Keep food clean, move things fast, follow rules |
Agriculture | Crops, supplies | Less hard work, quick delivery, manage big jobs |
E-commerce | Packaged goods, furniture | Use space better, safe moving, steady work |
Tip: Vertical conveyors help save space and make work safer by stopping people from lifting heavy things.
Incline conveyor systems help factories and warehouses in many ways. They make work faster by moving things automatically. Workers do not have to lift and carry as much, so they get hurt less. Companies can save up to $500,000 each year by using these machines. Work can get done 40% faster, so workers can do other important jobs.
These machines save space by moving things up and down. This means you do not need extra machines. Vertical conveyors help move things in buildings with more than one floor. They also help companies work better and grow bigger. You can change the angle and belt to fit different things. Safety tools like sensors and emergency stops keep workers safe.
Increases productivity up to 40%, saving labor and operational costs.
Reduces workplace injuries by minimizing manual lifting.
Saves floor space, particularly with vertical or steep-angle conveyors.
Flexible configuration to handle different loads, angles, and materials.
Safety systems such as emergency stops, guards, and holdback devices protect personnel.
The good things about incline conveyors are faster work, lower costs, and safer jobs.
To ensure reliable operation, RONWIN B200 conveyors require:
Daily cleaning of belts, rollers, and framework.
Regular inspection for worn, broken, or loose parts.
Lubrication of bearings, gears, and moving parts.
Belt alignment checks to prevent mistracking.
Timely replacement of damaged belts, pulleys, or motors.
Gearbox oil replacement as per usage schedule (e.g., after 2,500 operating hours).
Proper maintenance minimizes downtime and maximizes safety and lifespan.
| Problem | Cause | Solution |
|---|---|---|
| Belt Mistracking | Uneven load or pulley misalignment | Check alignment, distribute load evenly |
| Belt Slippage | Excess weight or worn pulleys | Adjust tension, clean pulleys |
| Material Carryback | Sticky/wet material | Install belt cleaners, regular cleaning |
| Blockages | Debris on belt | Routine inspection and cleaning |
| Roller Issues | Lack of lubrication | Grease and check rollers |
Safety Note: Adjustable speeds and sidewalls help match the conveyor to the load, enhancing safety and efficiency.
The RONWIN B200 can move boxes, powders, pellets, and bulk goods weighing less than 500kg. It works well with many materials, including food, grains, and small parts.
Most inclined belt conveyors work best at angles up to 13 degrees. The RONWIN B200 can handle up to 30 degrees with special belts or stoppers to prevent slipping.
The B200 includes protective fences, train edges, and emergency stops. These features help keep workers safe and prevent items from falling off the conveyor.
Clean the belt and rollers often.
Check for worn or loose parts.
Oil moving parts as needed.
Make sure the belt stays straight.
Regular care helps the conveyor last longer and work safely.
The RONWIN B200 Inclined/Declined Belt Conveyor is a versatile, safe, and efficient solution for moving materials between floors. Its adjustable angles, multiple belt options, and strong safety features make it ideal for factories, warehouses, e-commerce centers, and agricultural operations.
