2430
RONWIN
HS Code: 8431390000
In modern aviation cargo terminals, efficiency and reliability are paramount. Facing heavy cargo transfer tasks, every detail of the equipment directly impacts overall operational performance. To this end, we proudly introduce the Heavy-Duty Nickel-Plated Ball Transfer, specifically designed for air cargo environments. With exceptional load capacity, robust and durable construction, and user-centric design, it is the ideal choice for optimizing cargo sliding processes.
Each ball transfer boasts an impressive load capacity of up to 250kg to 400kg, easily handling heavy pallets, unit load devices (ULDs), and various large items commonly found in airports, ensuring smooth and stable transport.
The carefully engineered low-profile structure effectively minimizes the height difference and impact when cargo moves between platforms and equipment, enabling near-seamless smooth transitions and significantly reducing the risk of jamming and tipping.

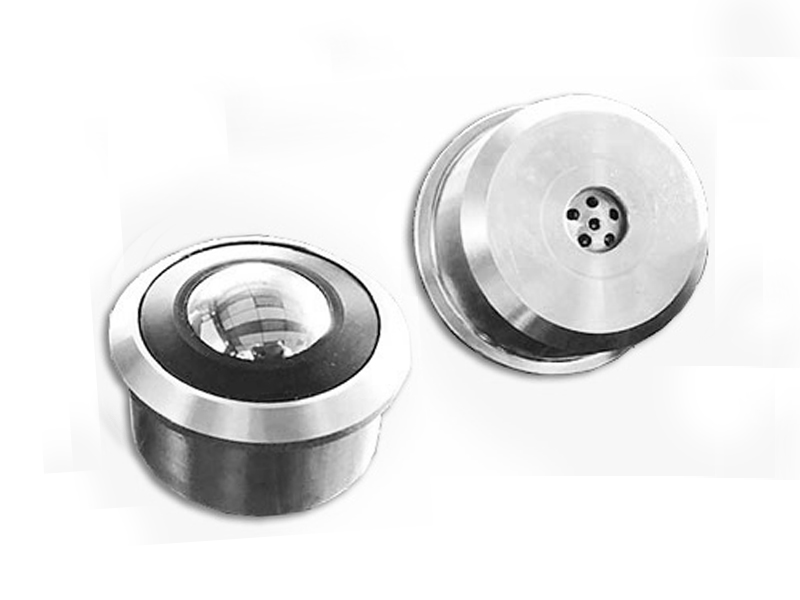

The core load-bearing ball is made from high-standard Bearing Steel or 440 Stainless Steel, offering high hardness and wear resistance. Its housing is precision-machined from solid steel bar, ensuring the product's overall structural integrity from the inside out, capable of withstanding high-intensity continuous operation.

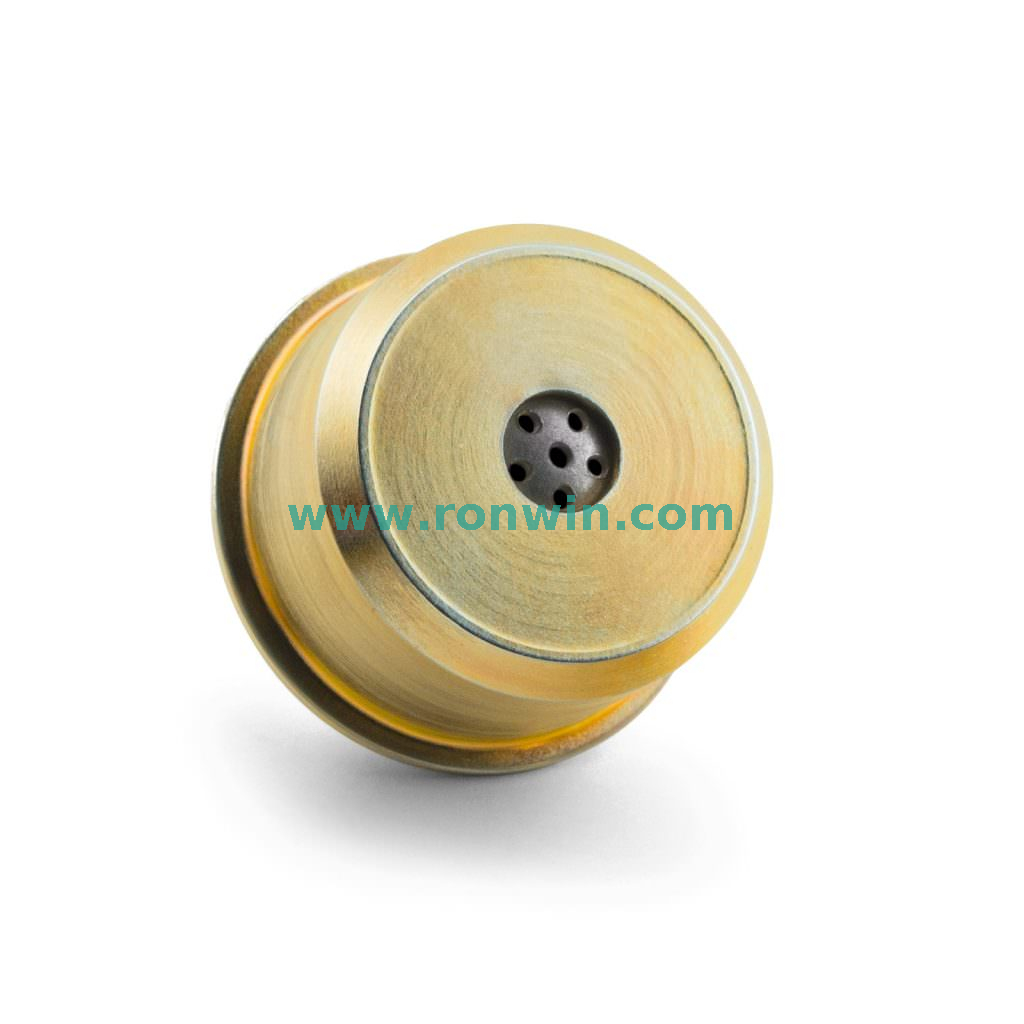

1. Efficient Drainage and Debris Clearance System: Features an innovative 7-hole drainage design, providing an additional 600% debris clearance area compared to traditional structures. This design allows for rapid drainage of water and clearance of debris, greatly simplifying cleaning and maintenance, and effectively preventing rotation failure caused by debris buildup—particularly suitable for aviation cargo environments requiring frequent cleaning..
2. Comprehensive Dust Protection: Integrated felt dust seals effectively block dust, powder, and other fine contaminants from entering the internal bearing mechanism, protecting the core rotating components, extending service life, and reducing maintenance needs.

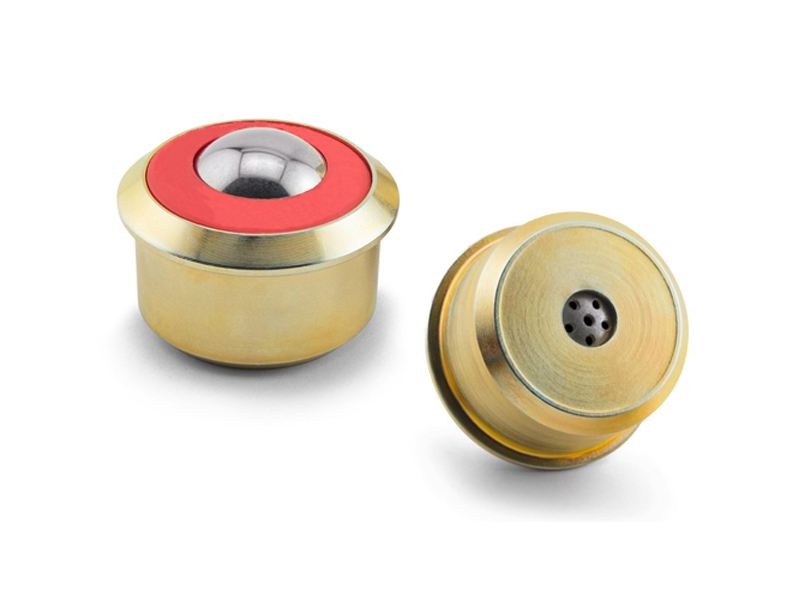

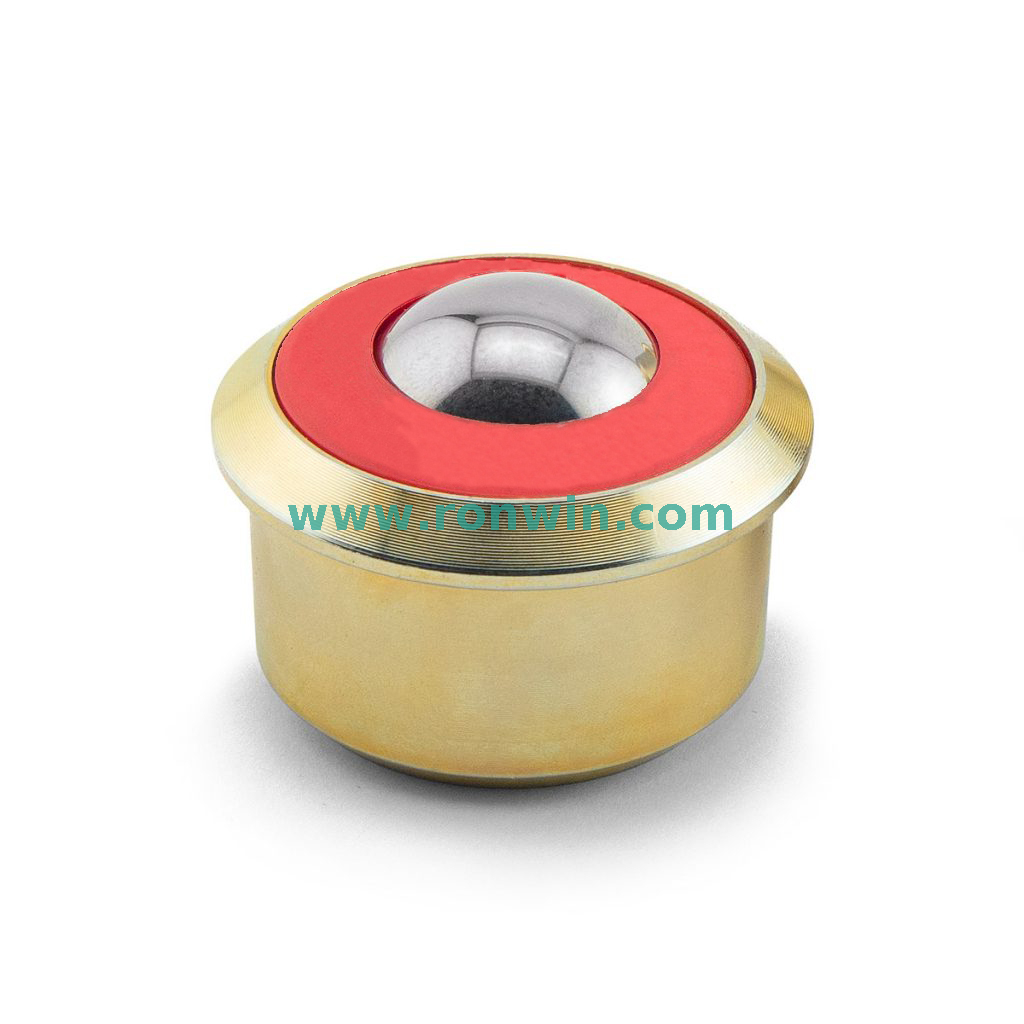

3. High-Quality Surface Finish: The entire unit features a nickel-plated surface. This not only gives the product a modern industrial aesthetic but also provides excellent corrosion and rust resistance, enabling it to perform reliably in potentially humid terminal environments.
4. Modular Assembly: The product consists of a load ball, support balls, a housing machined from solid bar stock, and a seal cover. This rational structure allows for easy installation and integration into various logistics equipment and work surfaces.
This product is ideally suited for:
-Cargo sorting chutes and transfer platforms in airport cargo terminals
-Moving and positioning heavy pallets and airline ULDs
-Connection and directional change points in conveyor systems
-Any industrial application requiring a heavy-duty, low-profile, and smooth rolling solution

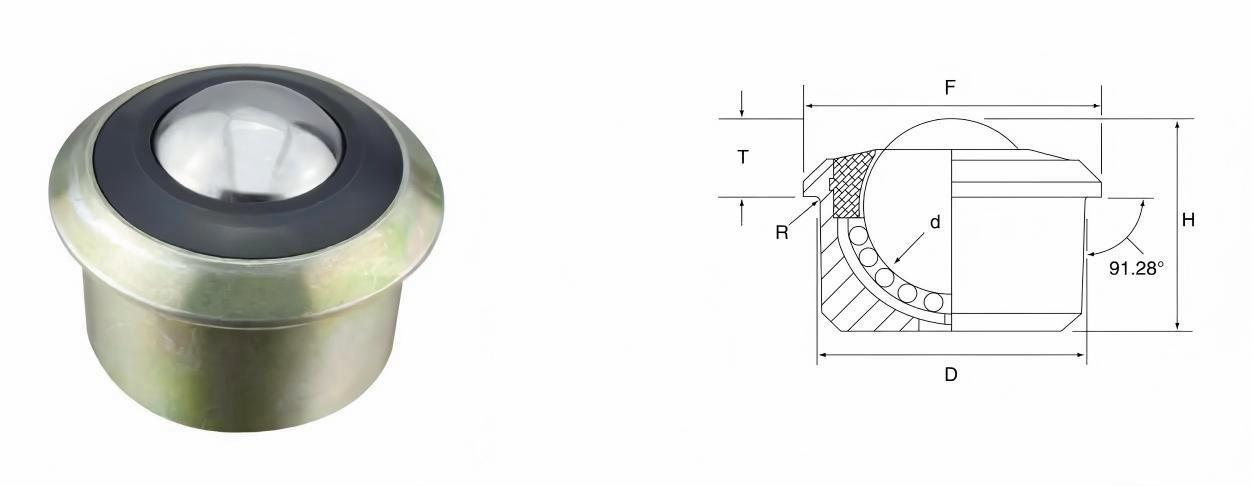

| Model No. | Loading Capacity (kg) | Dimensions (mm) | Weight (g) | ||||||||
| Material | Plastic Cover | Suggest | Max. | d | D | F | H | T | R | ||
| 2430Y | BS/CS | yellow | 250 | 300 | 30.16 | 45.1 | 50.8 | 36.5 | 13.3 | 0.8 | 0.380 |
| 2430R | S4/CS | red | 350 | 400 | 30.16 | 45.1 | 50.8 | 36.5 | 13.3 | 0.8 | 0.380 |
| 2430B | BS/CS | black | 250 | 300 | 30.16 | 45.1 | 50.8 | 36.5 | 13.3 | 0.8 | 0.380 |
This Heavy-Duty Nickel-Plated Ball Transfer is more than just a component; it is a powerful guarantee for enhancing the operational efficiency of your aviation cargo terminal. It combines high load capacity, low profile, easy maintenance, and long service life into one package, specifically designed to meet the most demanding cargo handling challenges. Choosing it means opting for sustained and reliable operational efficiency.
