Lifting and transfer is a critical functional module in automated logistics and production lines. Its core function is to vertically lift goods from the conveyor line, then change their conveying direction (typically at 90°) through transfer mechanisms (such as belts, rollers, chains, etc.), and finally lower and reset to achieve product redirection, merging, splitting, or precise positioning.
Based on different classification criteria, lifting and transfer machines can be divided into various types. According to the power source for lifting, they are categorized into pneumatic lifting, electric lifting, and hydraulic lifting. Based on the lifting actuation mechanism, they are classified into scissor-type lifting, screw/lead screw-type lifting, synchronous belt/chain-type lifting, linkage/four-bar mechanism lifting, and cam-type lifting.

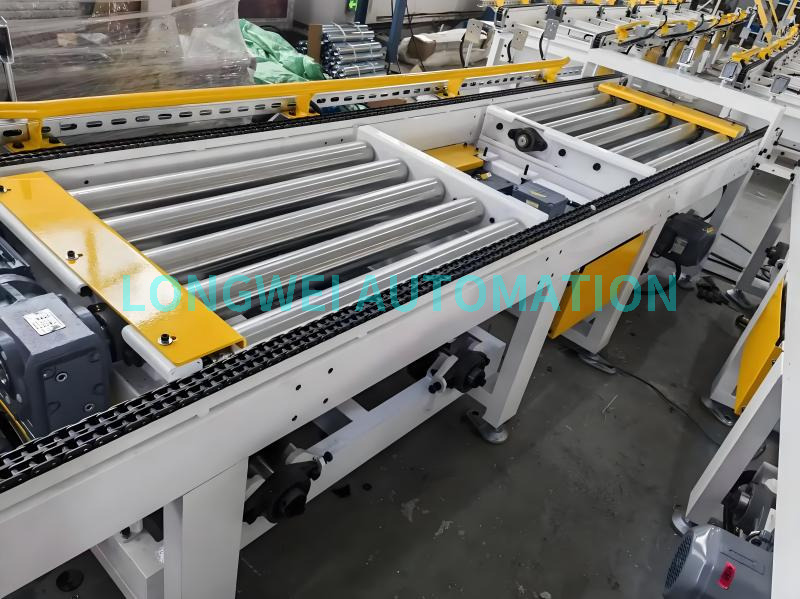

Th cam lifting mechanism is a mechanical system that converts rotary motion into precise linear lifting motion, widely utilized in modern high-speed automation equipment.
The core component is a specially designed cylindrical cam (or end cam).

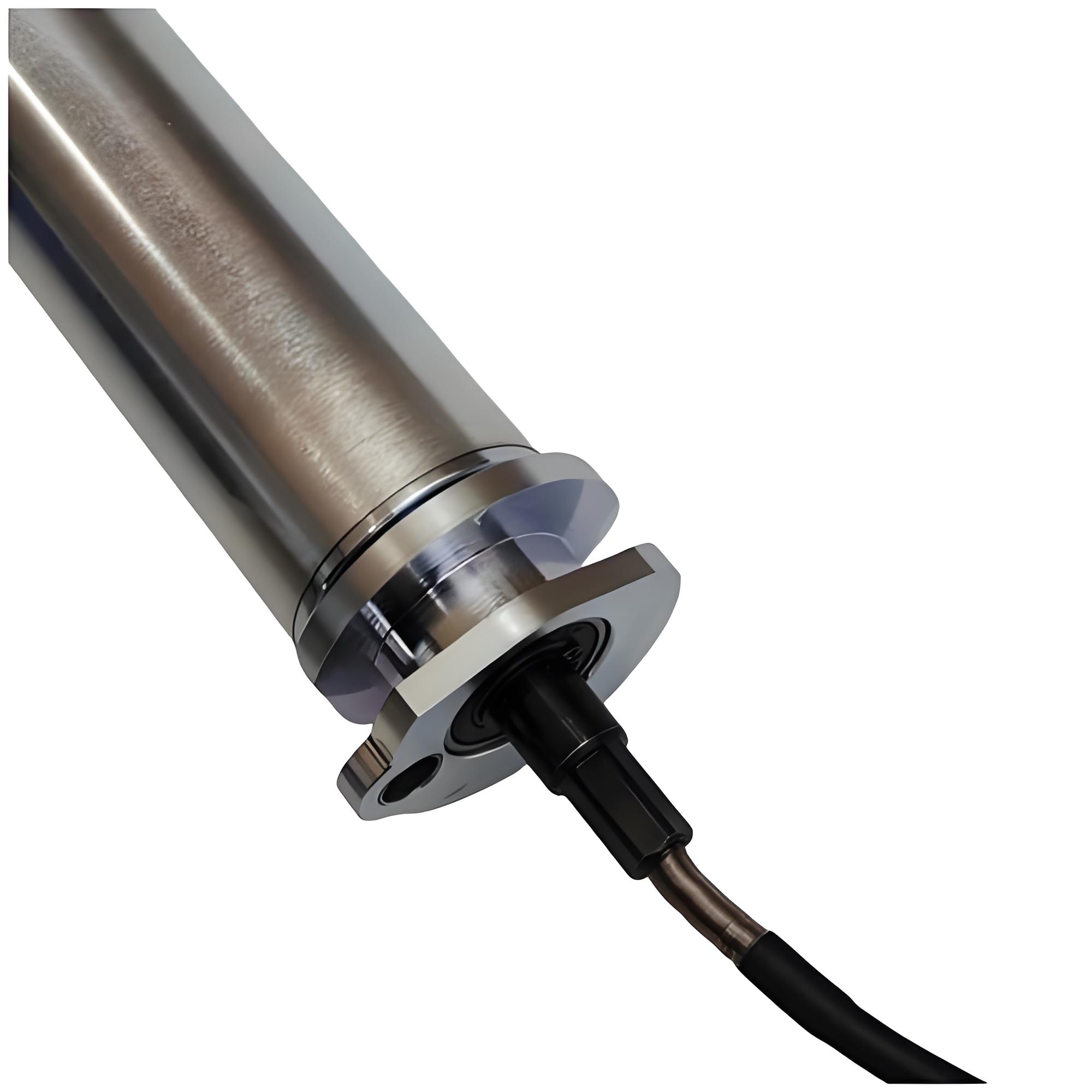

A servo motor (or a motor drive roller) drives the cam to rotate at a constant speed.
The bearing rollers (followers) inside the cam groove move along the cam’s profile curve.
The rollers drive the connected lifting platform or lifting rod to complete a full cycle of "lifting – dwell (transfer) – lowering – reset."
The speed, acceleration, and dwell time during the lifting process are entirely determined by the shape of the cam profile curve.
High Speed and High Cycle Rate: Cam drives are rigid transmissions with no delays from flexible elements, enabling extremely high lifting speeds and operational cycles (up to hundreds of cycles per minute).
Precisely Designed Motion Profile: By optimizing the cam curve (e.g., modified sine, modified trapezoidal curves), very smooth starts and stops can be achieved, significantly reducing impact, vibration, and noise to protect goods.
Accurate Positioning and Self-Locking: During the "dwell (transfer)" phase, the cam profile features a concentric arc (dwell segment), where the lifting platform remains stable at the highest point. The motor can maintain position without braking, ensuring reliable transfer actions.
High Reliability and Long Lifespan: Pure mechanical structure with simple maintenance, offering long service life under proper lubrication.
Excellent Synchronization: A single motor drive can easily synchronize multiple lifting points via one camshaft, ensuring platform stability.
Single Cam Lifting: Suitable for applications with small lifting loads and compact platform sizes.

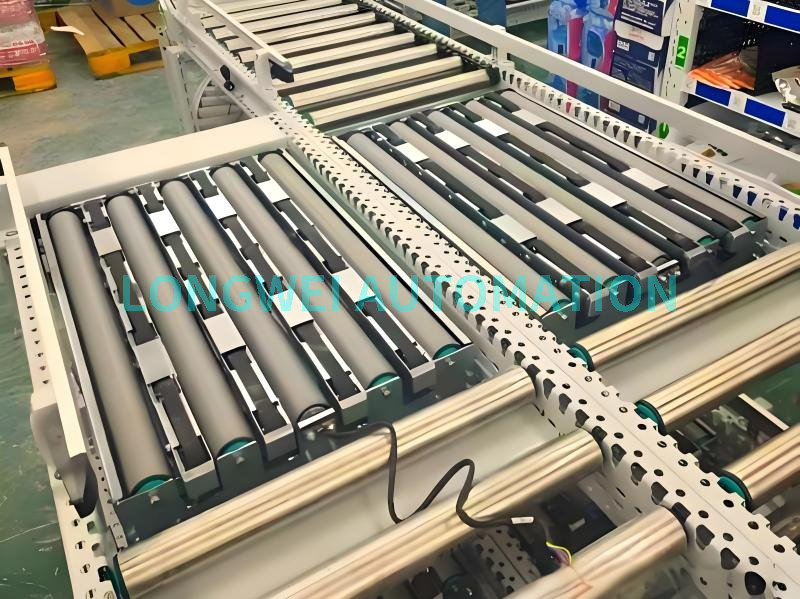

Dual Cam (or More) Symmetrical Lifting: This is the most common configuration. A through-going long shaft drives two or more identical cams to rotate synchronously, lifting the platform from both sides (or multiple points) simultaneously. This ensures smooth lifting without jamming, making it ideal for wider conveyor lines.
Cam and Linkage Combinations: Lever principles are sometimes employed to amplify small cam travel into larger platform movement or to alter the force direction.
High-efficiency (high-cycle) production environments, such as automotive, 3C electronics, and new energy battery production lines.
Applications with strict requirements for smooth operation and low noise, such as the food, pharmaceutical, and precision assembly industries.
Workstations requiring high-precision positioning and stable holding for extended periods.
Material transfer with light to medium loads (typically up to several hundred kilograms).
| Feature | Cam Lifting | Pneumatic Lifting | Electric Lifting |
|---|---|---|---|
| Speed | Extremely high, with controllable motion | Fast, but with significant start-stop impact | Moderate, requires acceleration control |
| Smoothness | Excellent, minimal impact and vibration | Poor, noticeable impact | Good, depends on control system |
| Precision/Holding | High, with mechanical self-locking | Low, requires air pressure maintenance | High, requires motor braking |
| Noise Level | Low | High (due to exhaust noise) | Relatively low |
| Cost | High (complex design and machining) | Low | Moderate |
| Maintenance | Simple (regular lubrication) | Simple (seal replacement) | Moderate (electrical and mechanical) |
| Cycle Adaptability | Fixed, determined by cam design | Adjustable, but optimization is complex | Flexible and adjustable |
The cam-driven lifting transfer machine represents a high-end, high-speed, and highly reliable solution for lifting and transferring applications. Although it involves higher initial costs and design complexity, its unparalleled motion performance and smooth operation make it the preferred technology in automation fields with stringent demands for production efficiency and operational quality.
When selecting a lifting transfer type, factors such as load capacity, speed, cycle time, smoothness requirements, control precision, and budget constraints must be comprehensively evaluated. The cam-driven lifting mechanism achieves the optimal balance between speed and stability, making it a "star" mechanism in high-performance automated production lines.
