RONWIN
HS Code: 8431390000

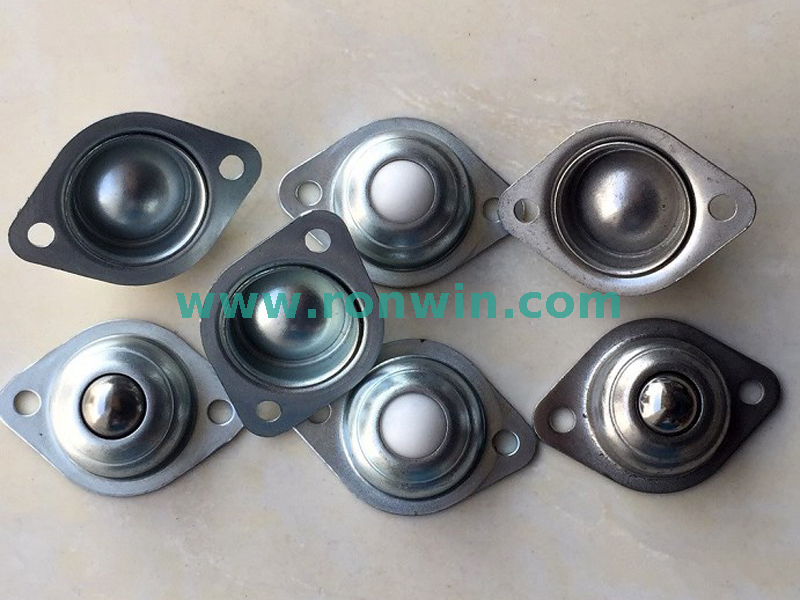

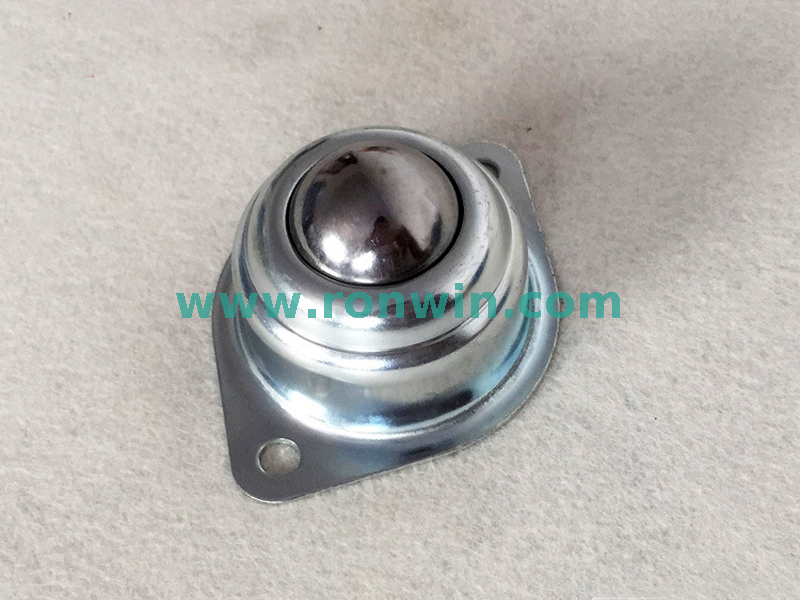

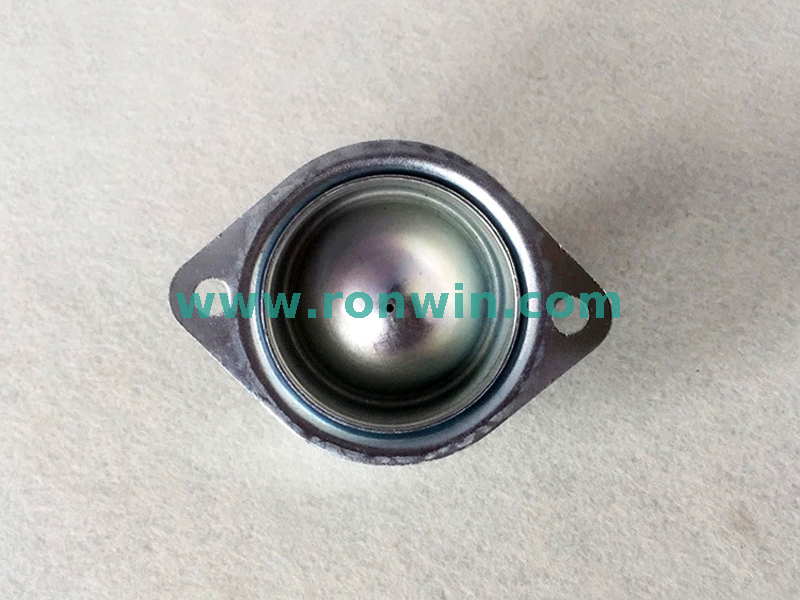

Flange Mounted Ball Bearing Transfer Unit
1112-1130
Features:
Low profile, high load capacity.
Knife edge seal on load ball.
Dirc exit hole.
Drill hole mounting.
Specifications:
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||
| 1112 | CS/CS | 7 | 10 | 25 |
| PL/CS | 3 | 5 | 21 | |
| SS/SS | 5 | 8 | 25 | |
| PL/SS | 3 | 50 | 21 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||
| 1115 | CS/CS | 10 | 15 | 40 |
| PL/CS | 5 | 10 | 30 | |
| SS/SS | 8 | 10 | 40 | |
| PL/SS | 5 | 10 | 30 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||
| 1119 | CS/CS | 20 | 25 | 70 |
| PL/CS | 10 | 15 | 35 | |
| SS/SS | 16 | 20 | 70 | |
| PL/SS | 10 | 15 | 35 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||
| 1125 | CS/CS | 25 | 30 | 140 |
| PL/CS | 12 | 18 | 80 | |
| SS/SS | 15 | 20 | 140 | |
| PL/SS | 12 | 18 | 80 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||
| 1130 | CS/CS | 40 | 50 | 230 |
| PL/CS | 20 | 25 | 135 | |
| SS/SS | 30 | 40 | 230 | |
| PL/SS | 20 | 25 | 135 | |
Alternative Sizes & Materials
