BCP-D
RONWIN
HS Code: 8431390000

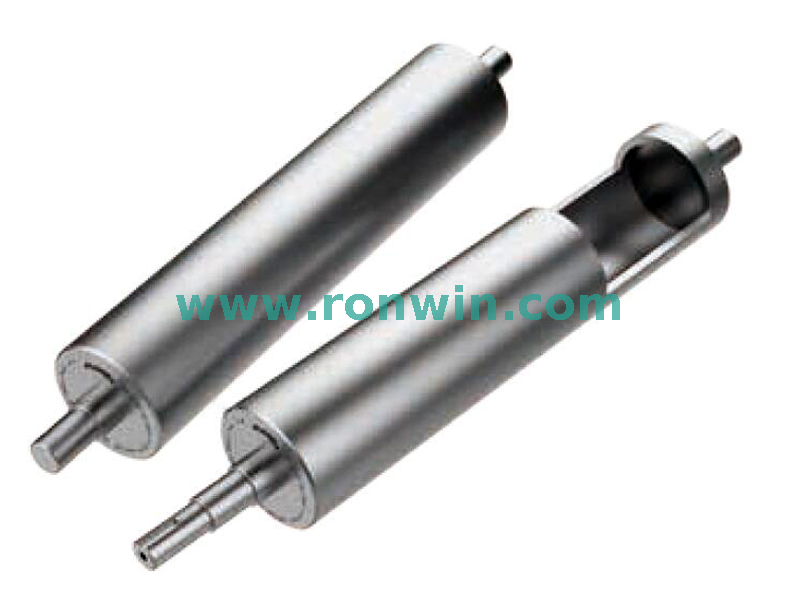

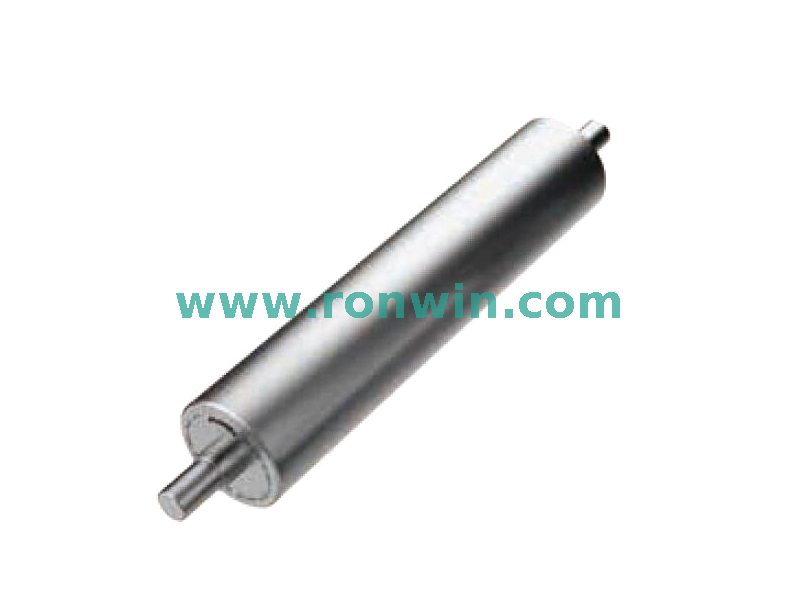

BCP-D Rotating Shaft Driven Pulley for Centre Drive Belt Conveyors
BCP-D rotating shaft driven pulley is as the main driving component for centre drive belt conveyors or installed at each end of a head/tail drive belt conveyor as the driven pulley.

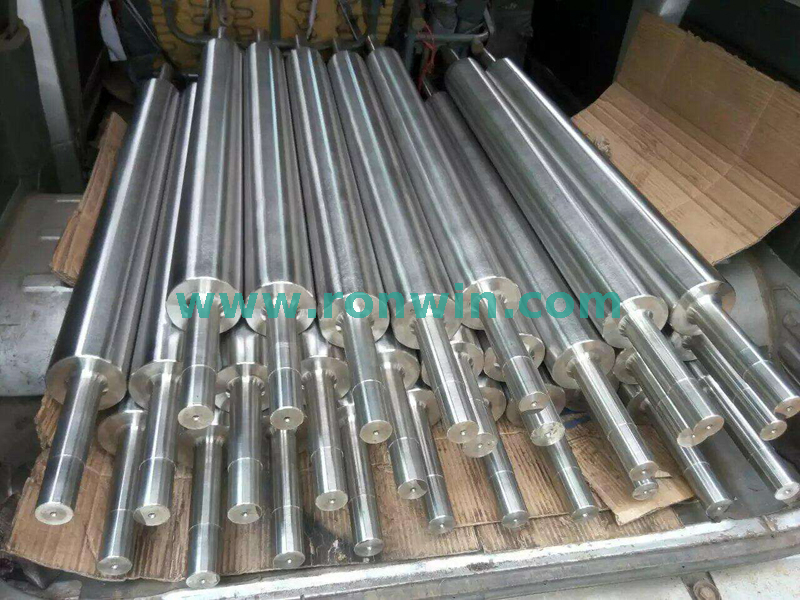

An integral shaft using a thermal refining process, special welding technology, and a new, highly reliable structure.
Spefications
Standard | Optional | Length | |||||
| Tube Dia. (D) | Tube Wall (t) | Shaft Dia.(d1) | Drum (D1) | Shaft Dia. (d1) | W | L | L1/L2 |
| Φ59 | 4.5 | Φ25 | Φ58 | Φ20 | 250～1300 | ≤1500 | ≤280 |
| Φ75 | 4.5 | Φ30 | Φ74 | Φ25/Φ35 | 250～1300 | ≤1500 | ≤280/≤185 |
| Φ87 | 4.5 | Φ30 | Φ85.6 | Φ25/Φ35 | 250～1300 | ≤1500 | ≤280/≤185 |
| Φ100 | 6.0 | Φ30 | Φ98 | Φ25/Φ35 | 250～1400 | ≤1600 | ≤280/≤185 |
| Φ112 | 6.0 | Φ35 | Φ110 | Φ30/Φ40 | 250～1400 | ≤1600 | ≤280/≤185 |
| Φ119 | 6.0 | Φ35 | Φ117 | Φ40 | 250～1400 | ≤1600 | ≤185/≤140 |
| Φ130 | 6.5 | Φ35 | Φ127 | Φ40 | 70～1800 | ≤2400 | ≤300 |
| Φ137 | 6.5 | Φ35 | Φ135 | Φ40 | 70～1800 | ≤2400 | ≤300 |
| Φ156 | 6.5 | Φ35 | Φ153 | Φ40 | 70～1800 | ≤2400 | ≤300 |
| Φ176 | 6.0 | Φ40 | Φ173 | Φ45 | 70～1800 | ≤2400 | ≤300 |
| Φ200 | 6.5 | Φ45 | Φ196 | Φ50/Φ55 | 70～1800 | ≤2400 | ≤300 |
| Φ216 | 8.5 | Φ50 | Φ212 | Φ55 | 70～1800 | ≤2400 | ≤300 |

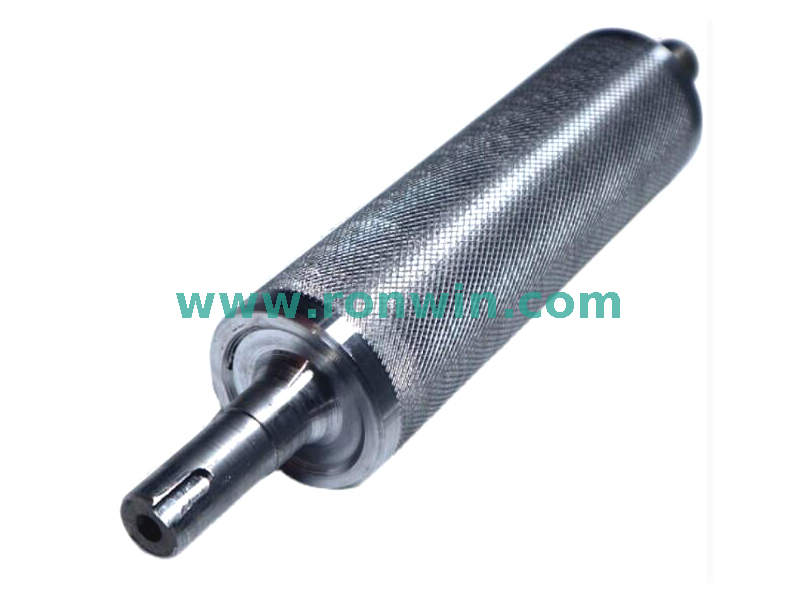

Surface treatment: zinc-plated, anti-rust oil coating, PU coating (yellow), kurling.
In addition to its high strength welding and precision processing technology, Longwei Automatic is dedicated to providing you with standardized, serialized high strength, high quality belt conveyor pulley. You can rely on us to provide a one-stop solution for carrying idler, head and tail pulley, driven pulley, bend pulley, snub pulley and takeup pulley.
Driven Pulley
A rotating shaft driven pulley of the BCP-D series is used for the main components of the underneath driving belt conveyor.
Head/Tail Pulley
For both ends of belt conveyor, according to the different drive type and structure.

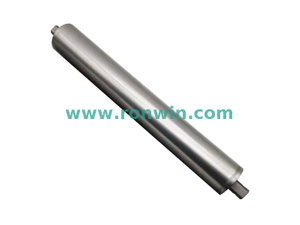

Underneath drive: used to change the belt transmission direction, adopts BCP-R fixed shaft belt conveyor pulley or BCP-D rotating shaft belt conveyor pulley.
Head/Tail drive
Driven pulley: adopts BCP-D rotating shaft belt conveyor pulley.
Driven roller: adopts BCP-R fixed shaft belt conveyor pulley or BCP-D rotating shaft belt conveyor pulley.
Bend Pulley/Takeup Pulley
To adjust the running deviation, tighten the belt, increase the driving roller angle, adopts BCP-R fixed shaft belt conveyor pulley or GR200 series roller. As the bending pulley and snub pulley, please consider the belt tension as well as lateral force.
Carrying Idler
Choose R1200 series conveyor roller (anti-static type) to support belts, simplify structures, reduce friction.
